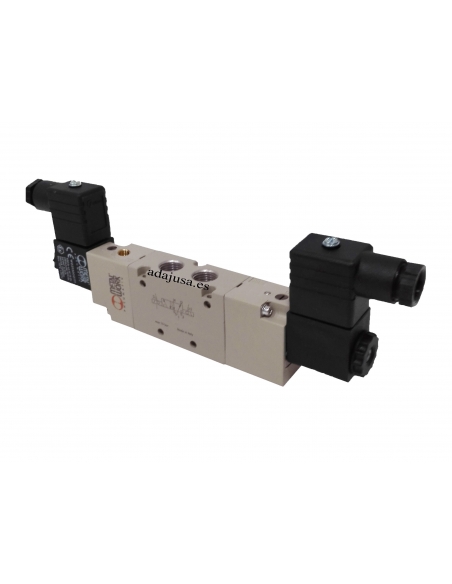

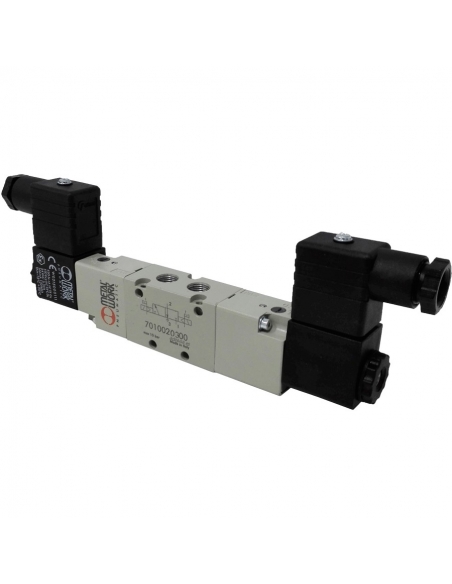

Solenoid valve 1/8 5 ways bistable assisted 24Vdc 2 W - Metal Work

€104.03 Tax included

€87.42 tax excl.

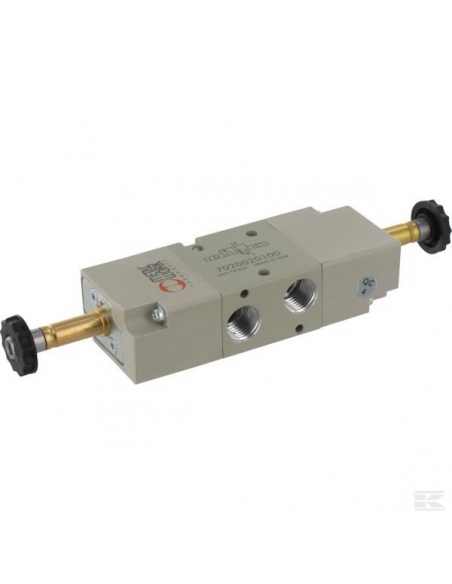

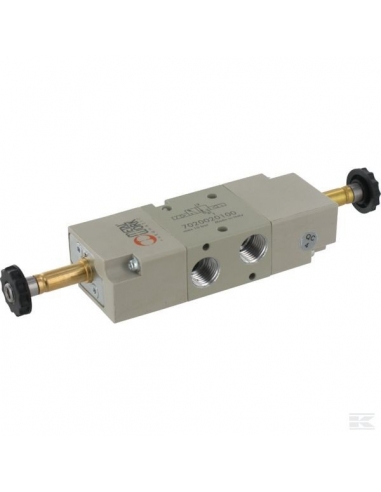

1/8" 5-way, 2-position assisted solenoid valves for pneumatic industrial or general applications.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2.5W, for cores of Ø8mm. Connector 22 mm

ESquema electrovalvula 5 vias biestable asistida
Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


1/8" 1/8" 5-way, 2-position pneumatic solenoid valves. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

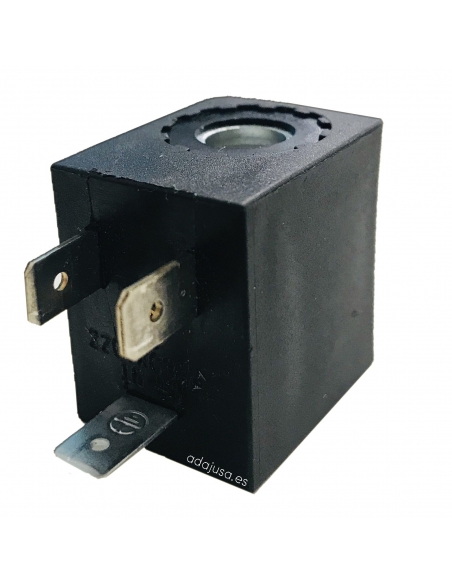

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm.

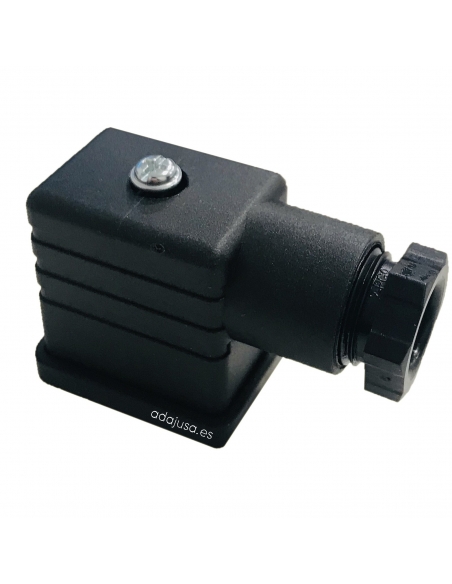

Plastic connector 22 mm

The supply includes:

  • 1 Solenoid valve 1/8 5/2 bistable assisted
  • 2 Coils 24Vdc 2 W
  • 2 x 22mm connector


Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Solenoid valve reference: 7010021600
  • Voltage: 24Vdc
  • Consumption: 2 W
  • Solenoid valve working pressure: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 5mm.
  • Flow at 6 bars Δp 1 bar: 550 Nl/min.
  • Manual drive: Yes.



Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
