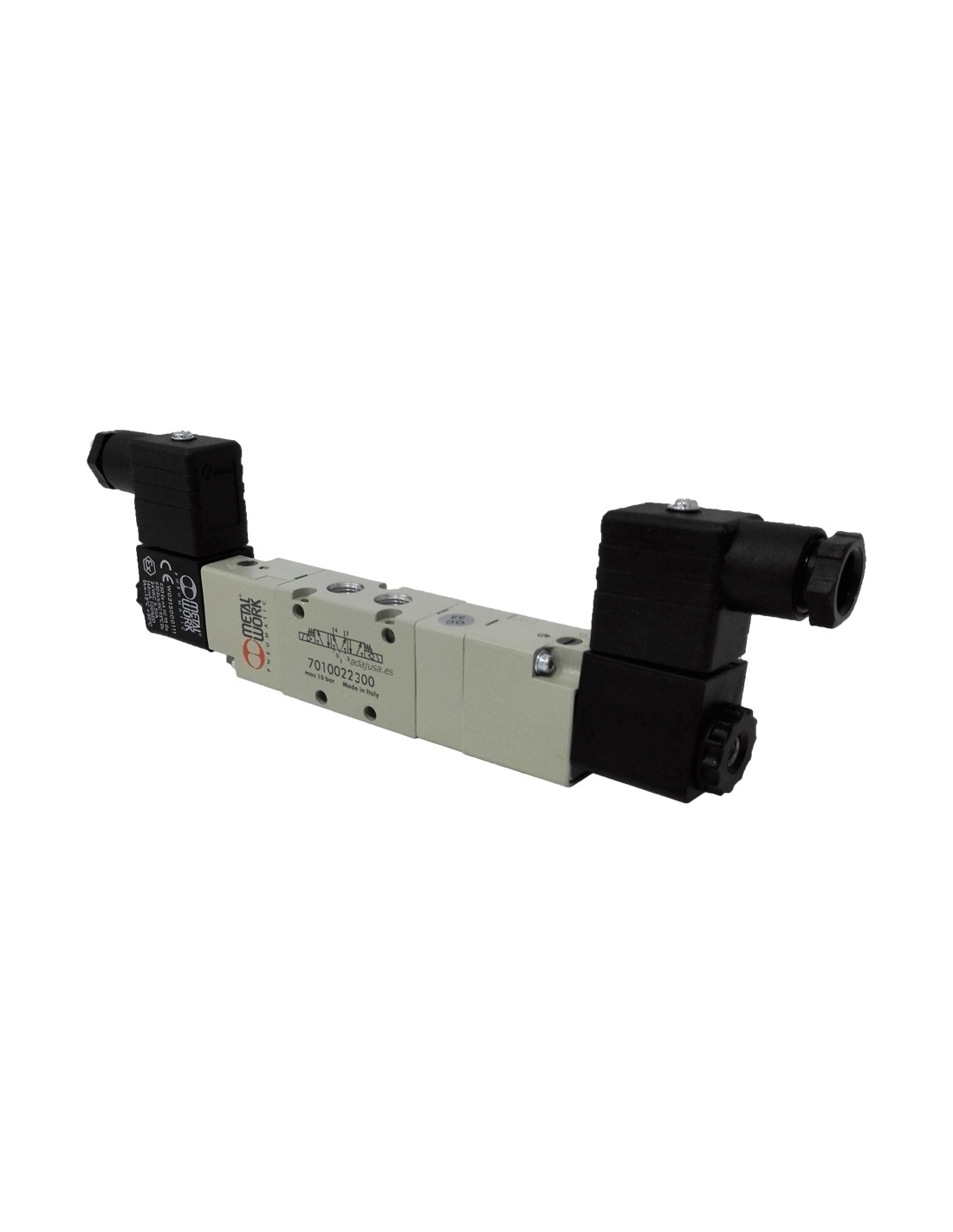

Solenoid valve 1/8 5 vias 3 positions pressure centers 230Vac 3.5VA - Metal Work

€112.47 Tax included

€94.51 tax excl.

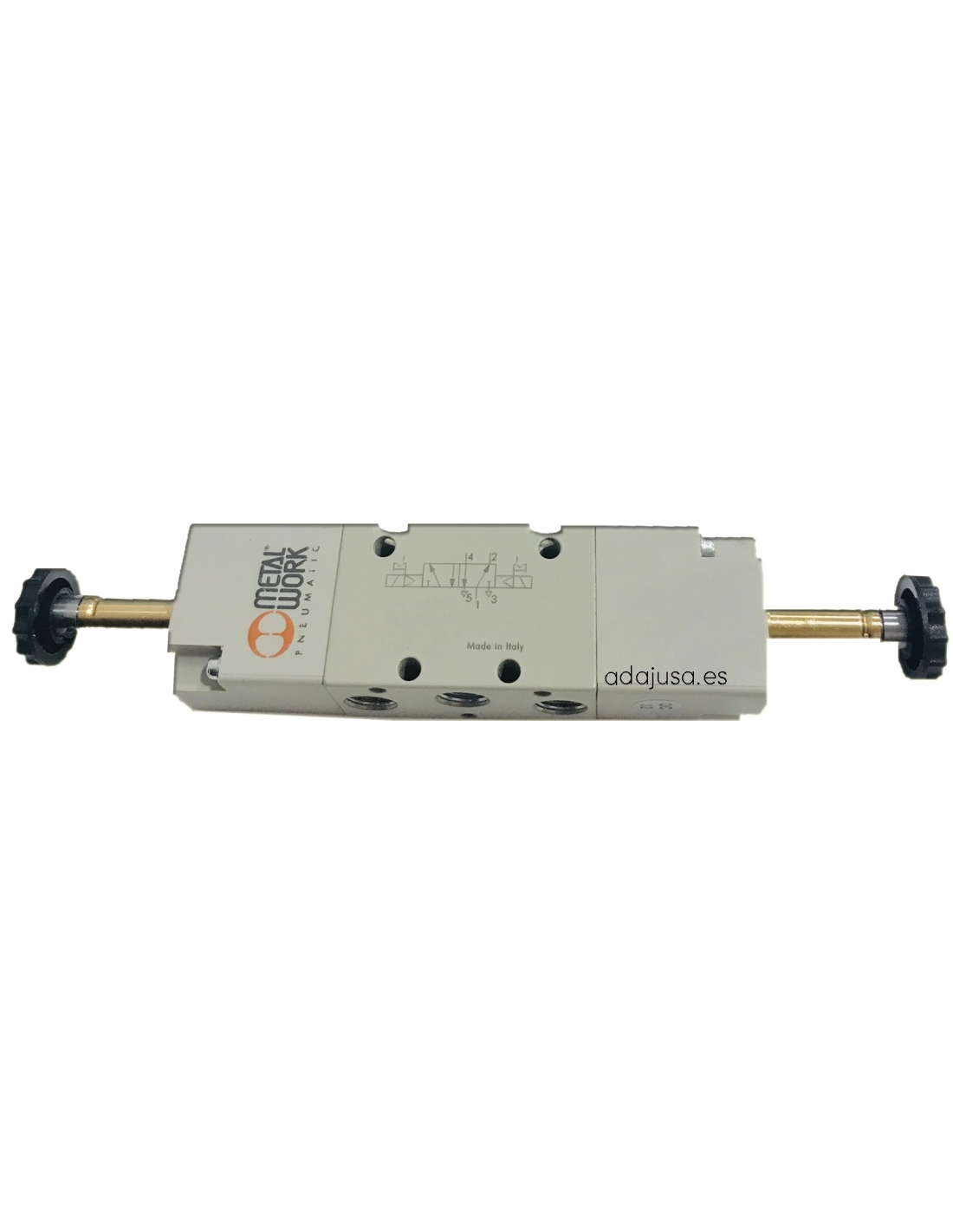

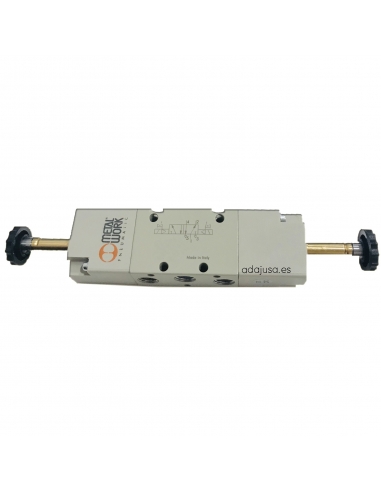

1/8" 5-way, 3-position solenoid valves,pressure centers, metal body, for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK.

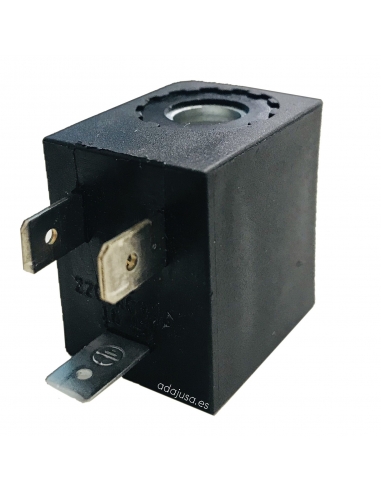

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm.


Logo-Metal-Work


Representative image for illustrative purposes, the item supplied shall correspond to the specifications indicated

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Solenoid valves of 1/8" of 5 ways and 3 positions, centers in pressure, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm.

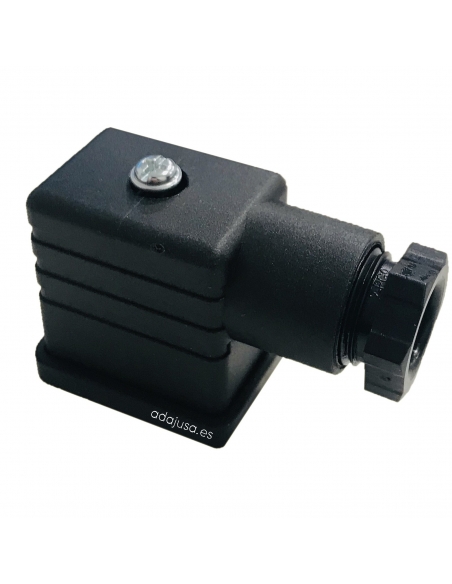

Plastic connector 22 mm.

The supply includes:

  • 1 - Solenoid valve 1/8 5/3 pressure centers
  • 2 - Coils 230Vca 3,5VA
  • 2 - 22mm connectors

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Solenoid valve reference: 7010022300 - SOV 26 SOS PC
  • Solenoid valve working pressure: 2.5 to 10 bar.
  • Voltage 230Vca
  • Consumption: 3.5VA
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 5mm.
  • Flow at 6 bars Δp 1 bar: 550 Nl/min.
  • Manual drive: Yes.



Dimensiones electroválvula 1/8 5/3 Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.

    To expand the information you can download the technical sheet by clicking on the "Attachments" tab

    Questions

    Be the first to ask a question about this product!

    Question about the product

    * Required fields
    (read)

    You might also like

    Solenoid valve 1/8 5 ways 3 positions centers pressure 24Vdc - Metal Work - ADAJUSA Solenoid valve 1/8 5 ways 3 positions centers pressure 24Vdc - Metal Work - ADAJUSA 2
    • Pack
    Solenoid valves 1/8

    Solenoid valve 1/8 5 ways 3 positions centers pressure 24Vdc 2 W - Metal Work

    Metal Work
    PK-E1853P24C
    €112.47 (€94.51 tax excl.)
    1/8" 5-way, 3-position solenoid valves,pressure centers, metal body, for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK.Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2.5W, for cores of Ø8mm. Connector 22 mm. Representative image for illustrative purposes, the item supplied shall...

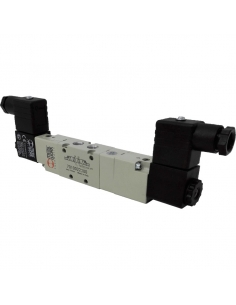

    Solenoid valve 1/8 5 ways 3 positions pressure centers 24Vac - Metal Work - ADAJUSA Solenoid valve 1/8 5 ways 3 positions pressure centers 24Vac - Metal Work - ADAJUSA 2
