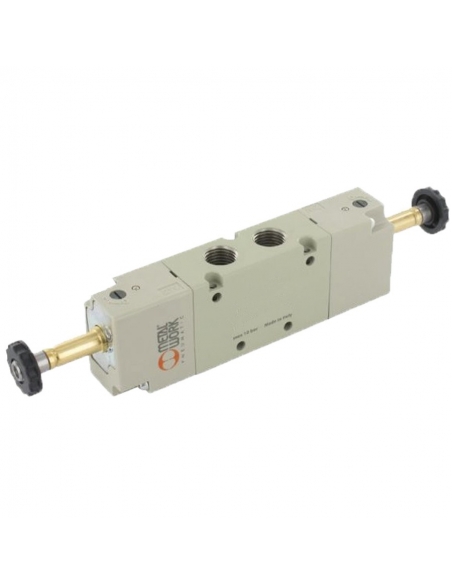

Double solenoid valve 1/8 3/2 ways NC-NO - Metal Work

Doublepneumatic solenoid valve 1/8" 3/2 ways. One inlet is normally closed, i.e. with coil voltage will not pass through the solenoid valve , when the coil is not energized the fluid or air passage will be interrupted and the other inlet is normally open, i.e. without coil voltage, the fluid or air will pass through the solenoid valve , when the coil is energized the fluid or air passage will be interrupted.

Coil and connector not included.

Technical characteristics:

• Manufacturer Metal Work
• Part number: SOV 28 SOS NC-NO Code: 7010023300
• Thread type: G 1/8"
• Bistable bar: 2.5 ÷ 10
• Minimum assistance pressure bar: 2.5
• Operating temperature °C: -10 ÷ +60
• Nominal diameter mm: 5
• Conductance C Nl/min - bar: 121,43
• Critical ratio b bar/bar: 0,32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
• Flow rate at 6 bar ΔP 1 bar Nl/min: 550
• TRA/TRR monostable at 6 bar ms: 15/35
• TRA/TRR bistable at 6 bar ms: 20/20
• Voltage tolerances %: -10 ÷ +15
• Class of isolation: F 155

Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab
