1/8 5-way monostable - Metal Work - ADAJUSA

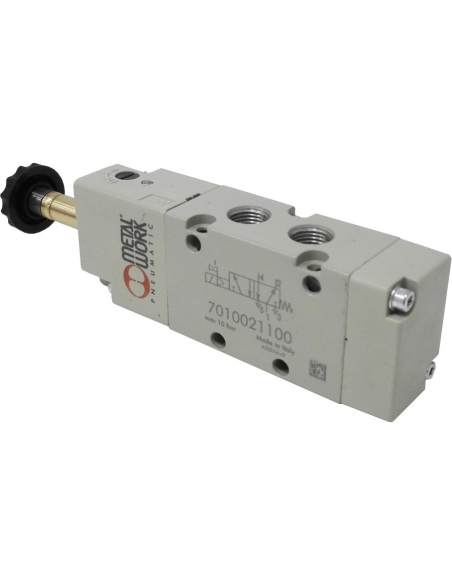

Solenoid valve 1/8 5 monostable roads without coil - Metal Work

Name: Solenoid valve 1/8 5 monostable roads without coil - Metal Work
Brand: Metal Work
SKU: 7010021100
Price: 58.0244 EUR
Availability: InStock

€58.02 Tax included

€48.76 tax excl.

5-way 1/8" electrovalves, for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK. Coil and connector not included.
simbolo eletroválvula neumática 5 vías
Logotipo Metal Work

Reference: 7010021100

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

5-way 1/8" pneumatic solenoid valves for industrial or general pneumatic applications. High throughflow and very high reliability and durability.

Coils and connectors not included.

Manufacturer: Metal Work
Reference: SOV25SOS00 Code: 7010021100.
Monostable bar operating pressure: 2.5 ÷10
Minimum assist pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
BISET TRA/TRR at 6 bar ms Voltage s coils: 20/20
Power: 2 W (DC) 3.5VA (AC
Voltage tolerances %: -10 ÷ +15

electrovalvula 1/8-5/2

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
