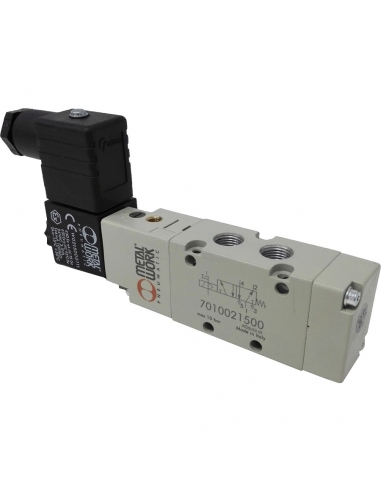

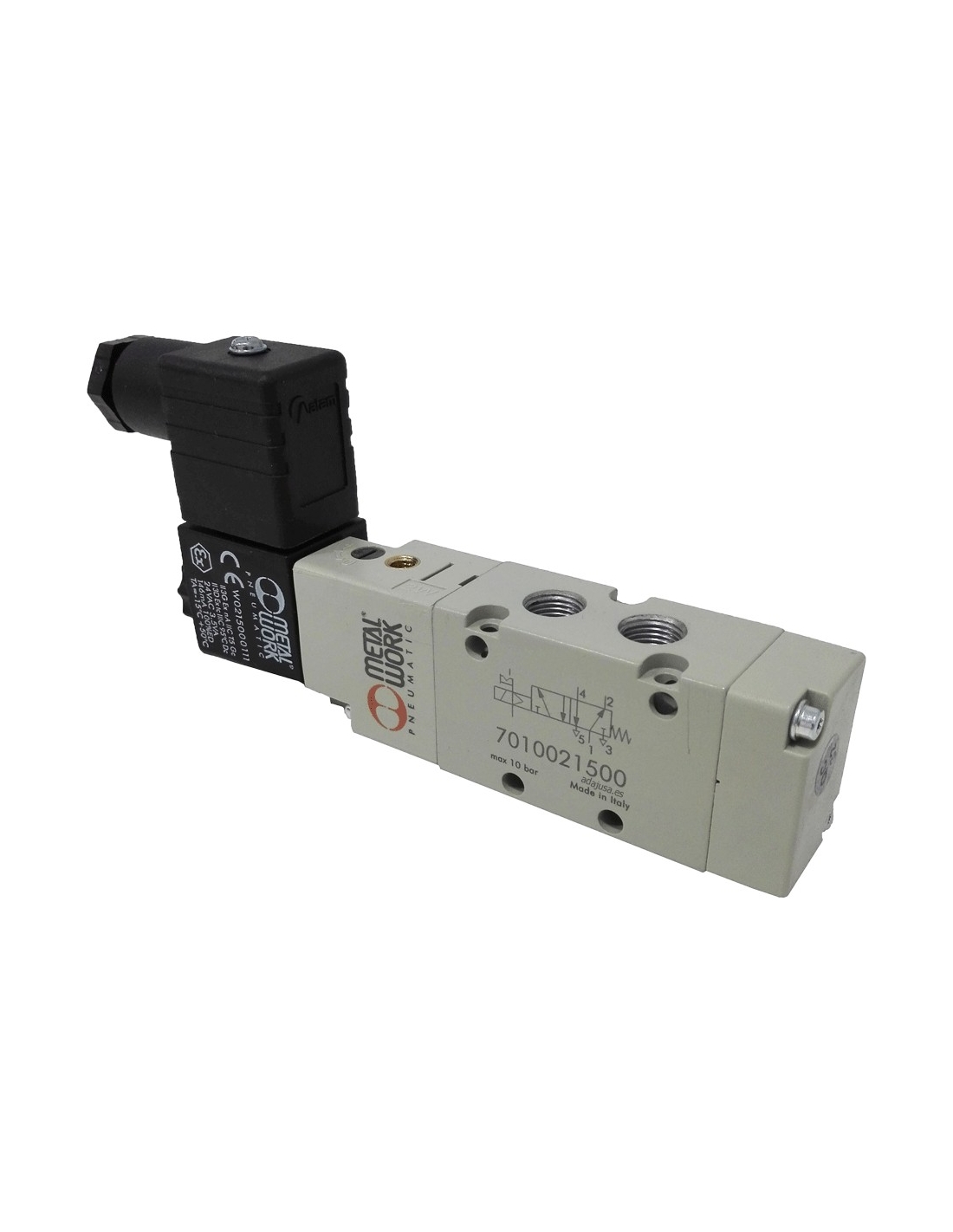

Solenoid valve 1/8 5 ways monostable assisted 24Vdc 2 W - Metal Work

Name: Solenoid valve 1/8 5 ways monostable assisted 24Vdc 2 W - Metal Work
Brand: Metal Work
SKU: PK-12150024C
Price: 70.9359 EUR
Availability: PreOrder

€70.94 Tax included

€59.61 tax excl.

1/8" 5-way assisted solenoid valves, for pneumatic applications for industrial or general use.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2.5W, for cores of Ø8mm.

22 mm connector
simbolo electroválvula neumática 5 vías asistida

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.37

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€8.38

Electrovalve 1/8 5-way assisted monostable - Metal Work - ADAJUSA

Solenoid valve 1/8 5-way monostable coil-assisted- Metal Work

€61.19

No queries yet, leave the first!

Privacy

Shipments

Returns

Solenoid valve 1/8 5 ways monostable assisted. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

The supply includes:

Solenoid valve 1/8 5 ways monostable assisted
Coil 24Vdc 2 W
Connector 22 mm

Characteristics:

Manufacturer: Metal Work
Reference: SOV25SES00 Code: 7010021500.
Operating pressure bar: Empty ÷ 1
Minimum assist pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
BISET TRA/TRR at 6 bar ms Voltage s coils: 20/20
Voltage: 24 Vdc
Power: 2 W
Voltage tolerances %: -10 ÷ +15

electrovalvula 1/8-5/2
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
