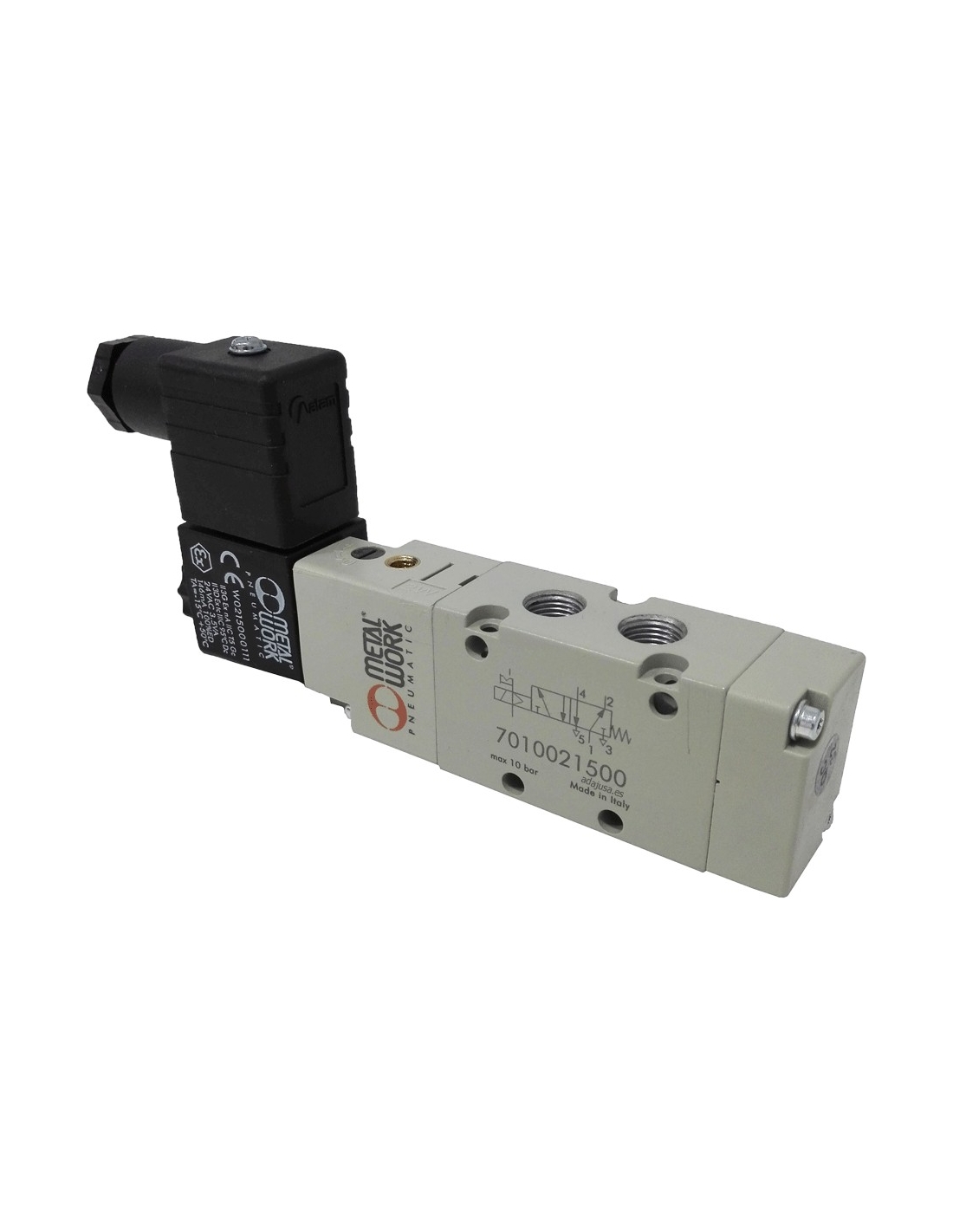

Solenoid valve 1/8 5-way monostable assisted 230Vac 3.5VA - Metal Work

€70.94 Tax included

€59.61 tax excl.

1/8" assisted 5-way solenoid valves for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of 8mm.

22 mm conetor

Logotipo Metal Work
simbolo electroválvula neumática 5 vías asistida

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Solenoid valve 1/8 5 ways monostable assisted. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.


The supply includes:

  • Solenoid valve 1/8 5 ways monostable assisted
  • Coil 230Vac 3,5VA
  • Connector 22 mm

Characteristics:

  • Manufacturer: Metal Work
  • Reference: SOV25SES00 Code: 7010021500.
  • Operating pressure bar: Empty ÷ 1
  • Minimum assist pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 15/35
  • BISET TRA/TRR at 6 bar ms Voltage s coils: 20/20
  • Voltage: 220 - 240 Vac
  • Power: 3.5 VA
  • Voltage tolerances %: -10 ÷ +15

electrovalvula 1/8-5/2
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
