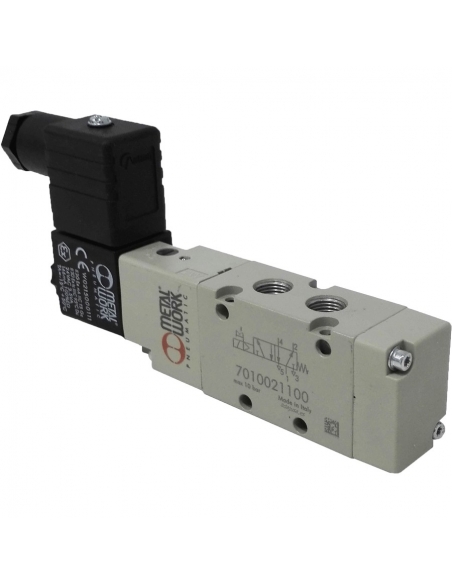

Solenoid valve 1/8 5-way monostable 230Vac 3.5VA - Metal Work

€67.10 Tax included

56.39 tax excl.

Instead of €69.90

PK-121100230

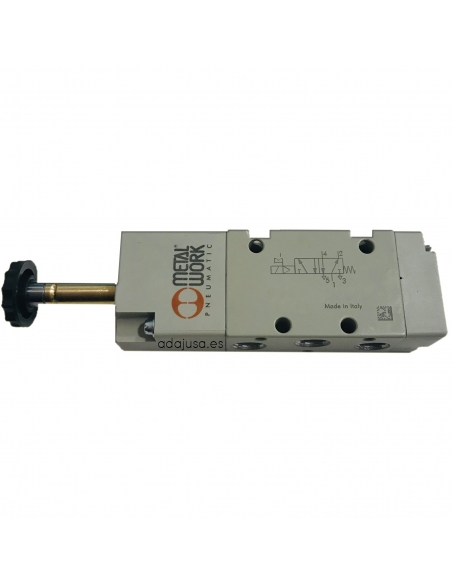

1/8" 5-way solenoid valves for pneumatic applications for industrial or general use.

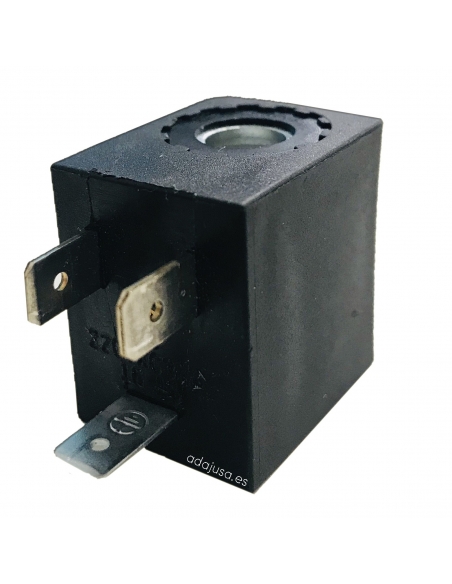

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of 8mm.

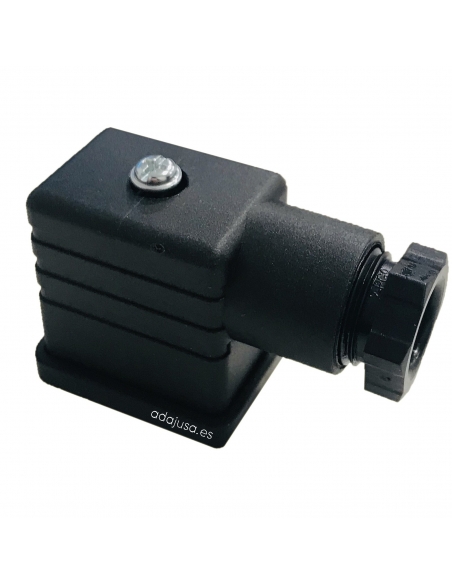

Electric connector for 22mm size solenoid valve, in black.

Manufactured in Europe by METAL WORK.
Logotipo Metal Work

simbolo eletroválvula neumática 5 vías

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

Coil for solenoid valve 230VAC Metal Work W0215000131 | ADAJUSA

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

€8.71

Solenoid valve connector size 22 - Metal Work

€1.42

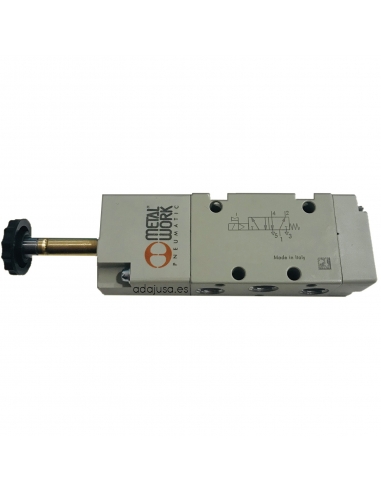

1/8 5-way monostable - Metal Work - ADAJUSA

Solenoid valve 1/8 5 monostable roads without coil - Metal Work

€59.77

1 question about the product

Privacy

Shipments

Returns

5-way 1/8" pneumatic solenoid valves for industrial or general pneumatic applications. High throughflow and very high reliability and durability.

The supply includes:

5-way 1/8" pneumatic solenoid valves
Coil 230Vac 3,5VA
22mm connector

Characteristics:

Manufacturer: Metal Work
Solenoid valve reference: 7010021100 - SOV25SOSOO .
Monostable bar operating pressure: 2.5 ÷10
Minimum assist pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
BISET TRA/TRR at 6 bar ms Voltage s coils: 20/20
Voltage: 230Vac
Power: 3.5 VA
Voltage tolerances %: -10 ÷ +15

electrovalvula 1/8-5/2

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)

Questions

Question

buenos dias , por favor me podeis dar un plazo de entrega para un Pack Electroválvula 1/8 5 vías monoestable normalmente cerrada (NO), con bobina a 230Vac y conector 22 mm
7010021100
un saludo

Answer

Estimado cliente,

Este tipo de productos tiene un tiempo medio de entrega de 48/72 horas laborables normalmente.

Saludos

adajusa
