Pneumatic solenoid valve 5/2 bistable differential series 70 on base - Metal Work - ADAJUSA

Pneumatic solenoid valve 5/2 bistable differential series 70 on base - Metal Work

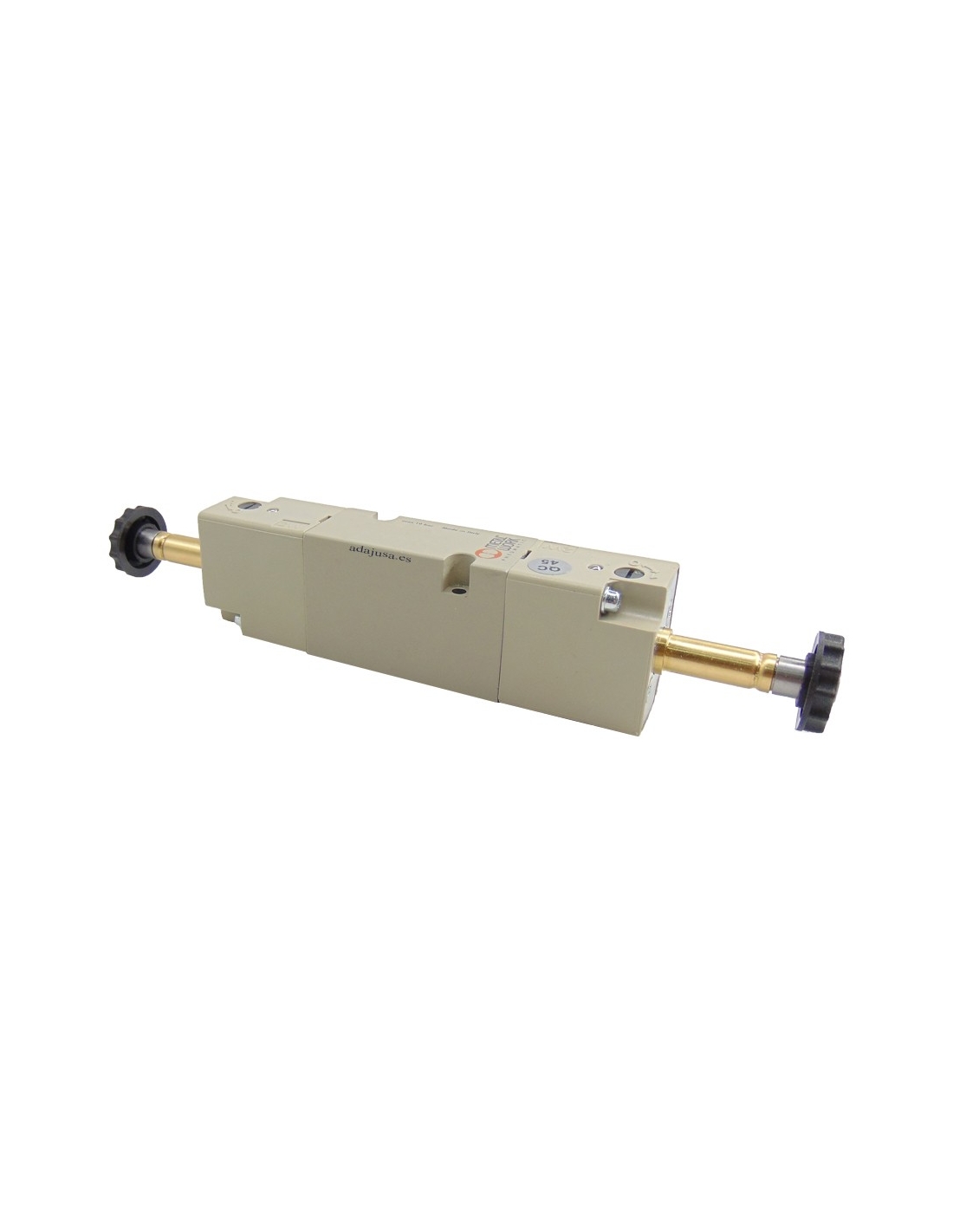

Name: Pneumatic solenoid valve 5/2 bistable differential series 70 on base - Metal Work
Brand: Metal Work
SKU: 7011021300
Price: 79.4087 EUR
Availability: PreOrder

€79.41 Tax included

€66.73 tax excl.

Solenoid valve on base plate 5/2 bistable differential series 70. Connector and coil not included.

Reference: 7011021300

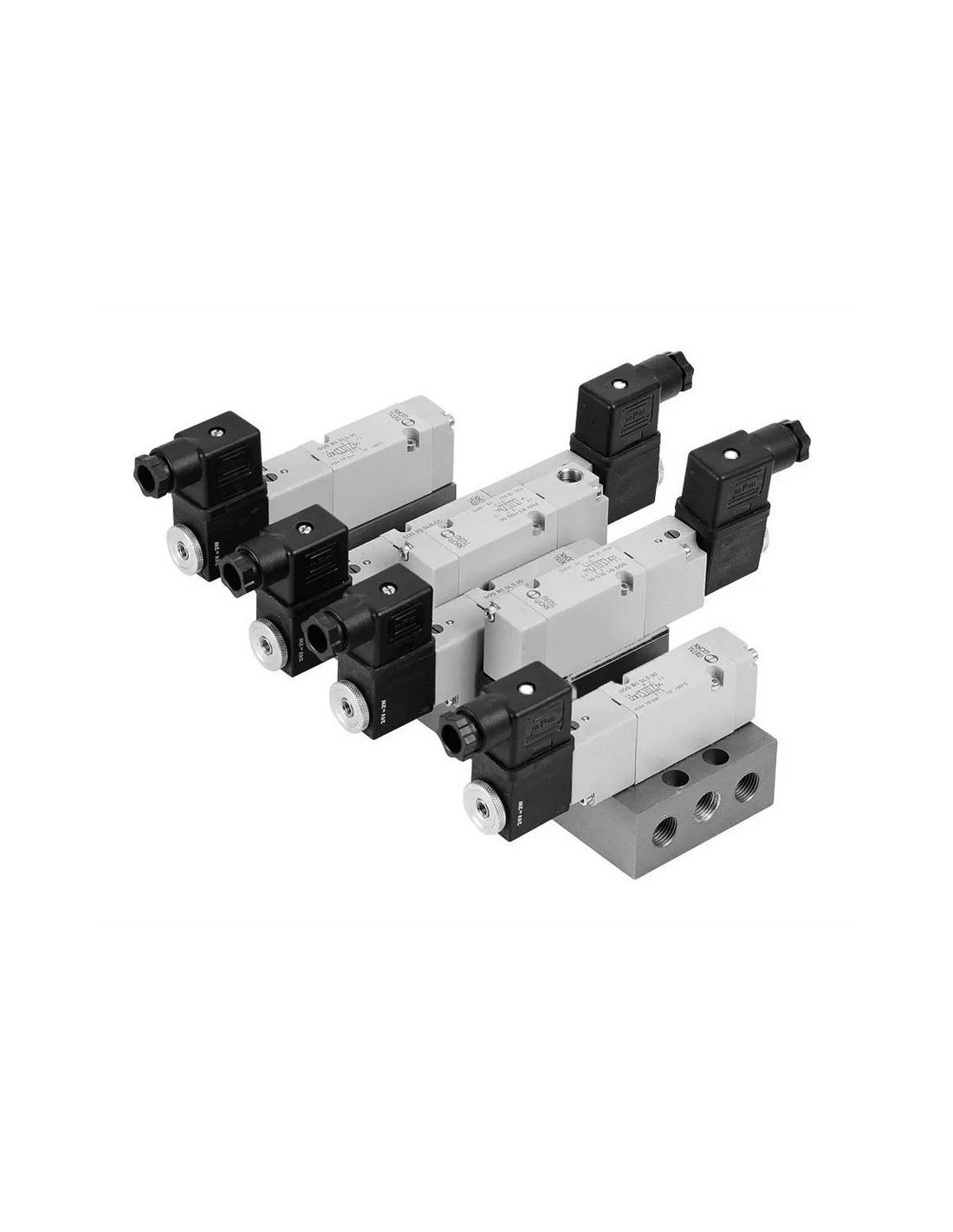

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve 5/2 bistable differential series 70 on plate. Connectors and coils not included.

Characteristics:

Manufacturer: Metal Work
Reference: 7011021300 - SOV B5 SOD OO
Pressure (bar): 1 +/- 10
Minimum pressure (bar): 2.5
Operating temperature (ºC): -10 +/- 60
Nominal diameter (mm): 5
Conductance C (N| /min - bar): 107.69
Critical ratio b (bar): 0.29
Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
Flow at 6 bar ∆P 1 bar (N| /min): 450
Monostable TRA/TRR at 6 bar (ms): 15 / 35
Tension tolerate (%): -10 +/- 15
Insulation class: F 155
Maximum torque core coil (Nm): 1

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Solenoid valve sheet on base

70 series solenoid valves on plate

Download (182.21KB)
