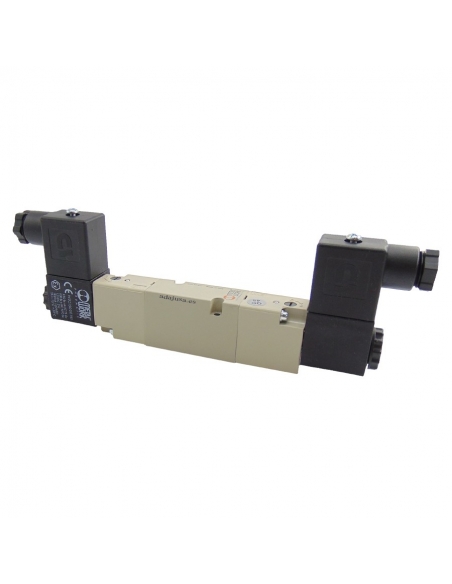

Pneumatic solenoid valve 5/3 closed centers 110 Vac series 70 on base - Metal Work - ADAJUSA

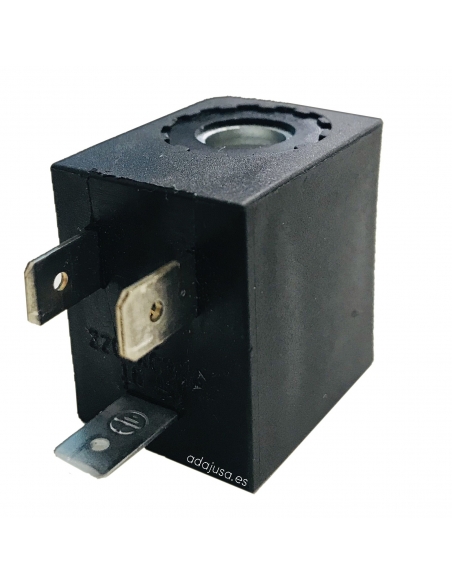

Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work

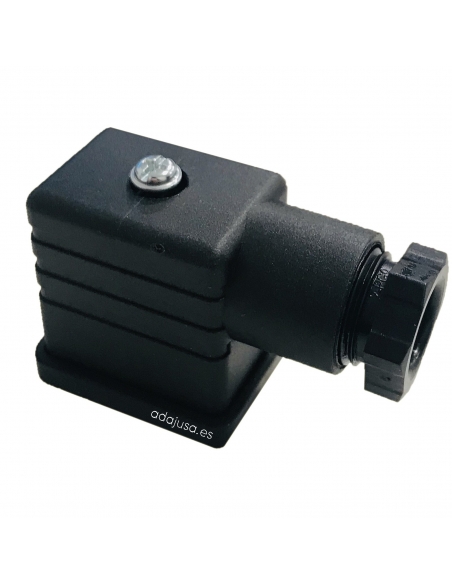

Solenoid valve connector size 22

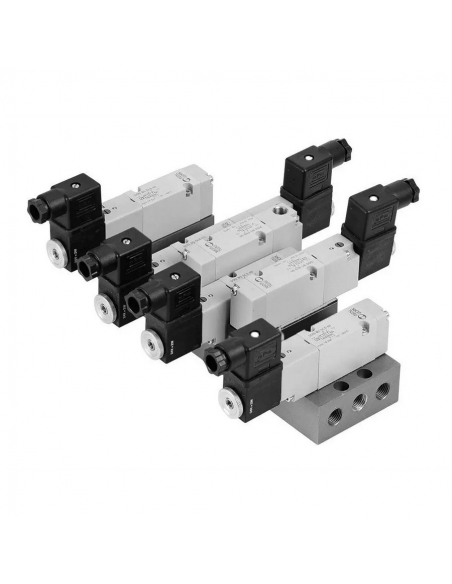

Solenoid valve 5/3 monostable closed centers 110 Vac series 70 on Metal Work basis - ADAJUSA
Pneumatic solenoid valve 5/3 closed centers 110 Vac series 70 on base - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Solenoid valve 5/3 monostable closed centers 110 Vac series 70 on Metal Work basis - ADAJUSA

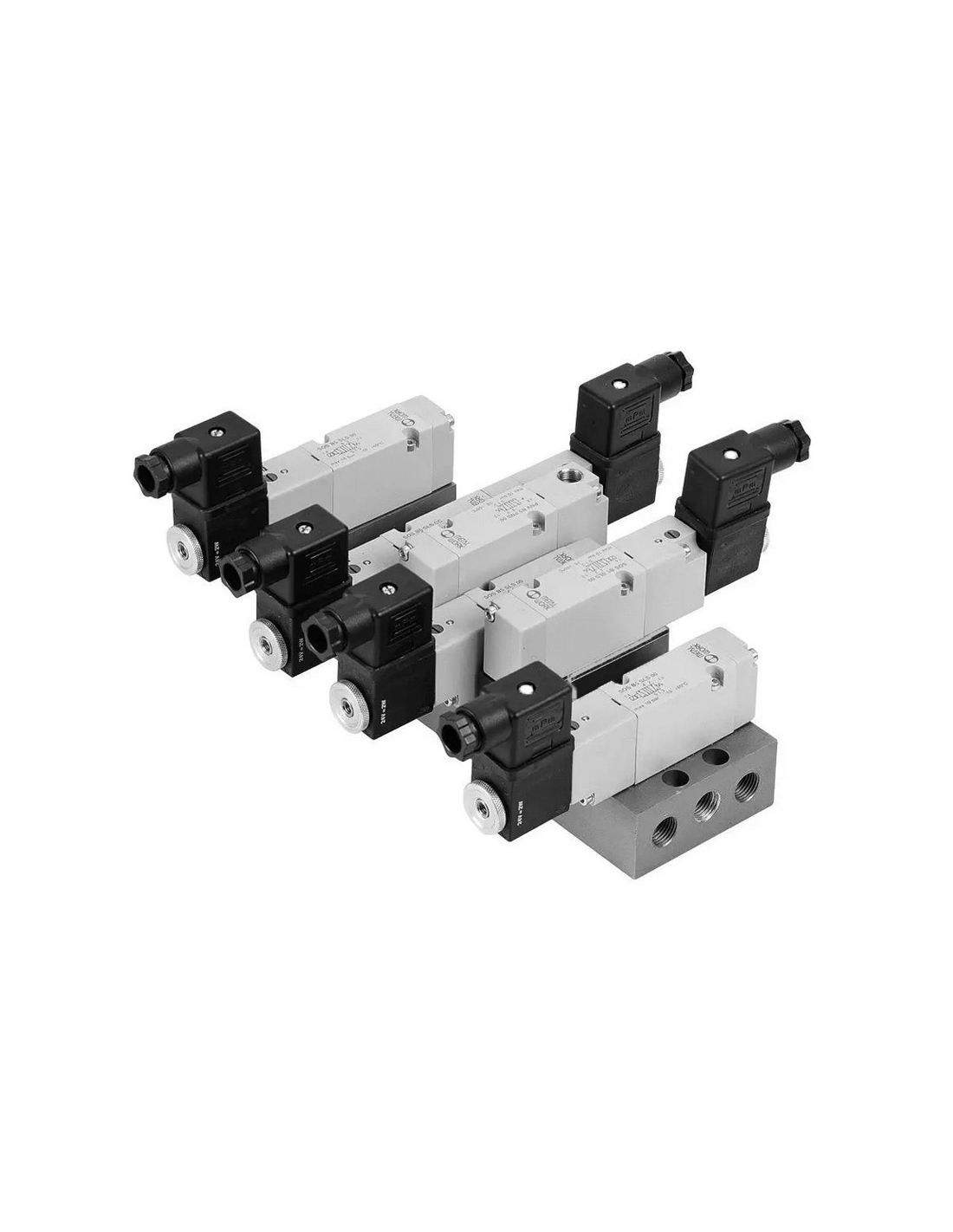

Solenoid valve 5/3 closed centers 110 Vac series 70 on base - Metal Work

€112.84 Tax included

94.82 tax excl.

Instead of €117.56

PK-52CC110

Solenoid valve on base plate 5/3 monostable closed centers, series 70. With 110 Vac connector and coil



Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Pneumatic solenoid valve 5/3 moestable closed centers, series 70 on plate. With 110 Vac 3.5VA connectors and coils

The supply includes:
  • Solenoid valve 5/3 monostable closed centers
  • 2 Coils 110Vac 3.5VA
  • 2 Connectors 22 mm
Features:
  • Manufacturer: Metal Work
  • Reference: 7011022100 - SOV B6 SOS CC
  • Pressure (bar): 2.5 +/- 10
  • Minimum pressure (bar): 2.5
  • Operating temperature (ºC): -10 +/- 60
  • Nominal diameter (mm): 5
  • Conductance C (N| /min - bar): 107.69
  • Critical ratio b (bar): 0.29
  • Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
  • Flow at 6 bar ∆P 1 bar (N| /min): 450
  • Monostable TRA/TRR at 6 bar (ms): 15 / 35
  • Tension tolerate (%): -10 +/- 15
  • Insulation class: F 155
  • Maximum torque core coil (Nm): 1
  • Voltage: 24 Vac
  • Power: 3.5 VA



Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
