Pneumatic solenoid valve 5/2 differential series 70 on plate. With connector and coil of 24 Vac 3.5VA
The supply includes:
- Differential solenoid valve 5/2
- 2 Coils 24Vac 3.5VA

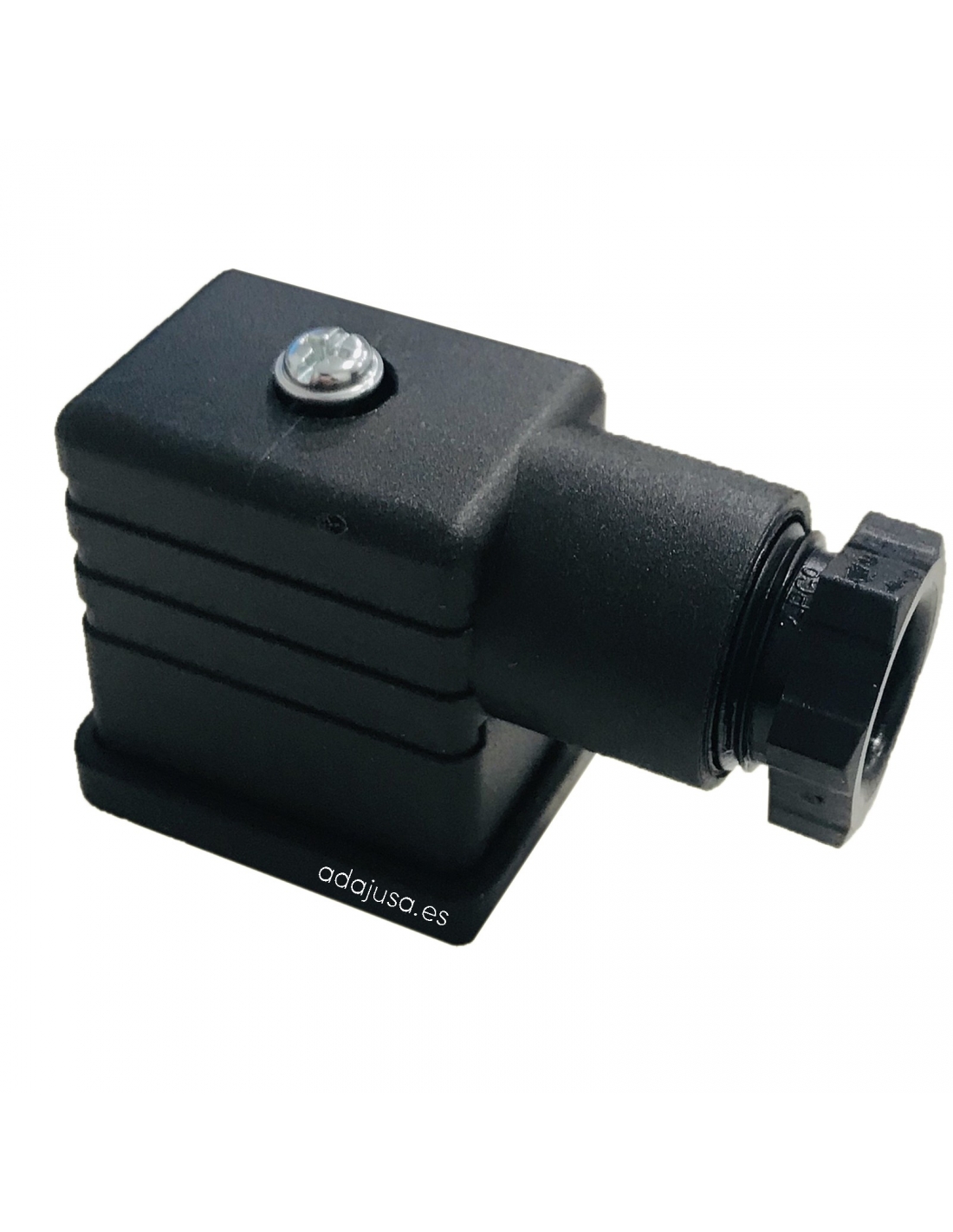

- 2 Connectors 22 mm
Features:
- Manufacturer: Metal Work
- Reference: 7011021300 - SOV B5 SOD OO
- Pressure (bar): 2.5 +/- 10
- Minimum pressure (bar): 2.5
- Operating temperature (ºC): -10 +/- 60
- Nominal diameter (mm): 5
- Conductance C (N| /min - bar): 107.69
- Critical ratio b (bar): 0.29
- Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
- Flow at 6 bar ∆P 1 bar (N| /min): 450
- Monostable TRA/TRR at 6 bar (ms): 15 / 35
- Tension tolerate (%): -10 +/- 15
- Insulation class: F 155
- Maximum torque core coil (Nm): 1
- Voltage: 24 Vac
- Power: 3.5 VA
Material for professional use, install in compliance with the regulations in force at the place of installation.
To expand the information you can download the technical sheet by clicking on the "Attachments" tab
