Three-phase motor 3kW - 4HP 3000 rpm 230/400V Flange B3 IE3 - SIMOTICS FL INNOMOTICS

Name: Three-phase motor 3kW - 4HP 3000 rpm 230/400V Flange B3 IE3 - SIMOTICS FL INNOMOTICS
Brand: INNOMOTICS
SKU: 03231AA42AA4
Price: 484.66 EUR
Availability: BackOrder

€484.66 Tax included

407.28 tax excl.

03231AA42AA4

Three-phase electric motor 3kW (4CV) asynchronous 230/400Vac, 2 poles (3000 rpm) with flange B3 (Legs). Energy rating IE3. SIMOTICS Flow series from INNOMOTICS. This series of motors is ideal for standard applications, such as pumps, fans, conveyor belts.... It can be connected directly to the mains and also by means of frequency converters.

Manufactured by INNOMOTICS, SIMOTICS FL series in aluminum.

Part number: 1LE0323-1AA4-2AA4

INNOMOTICS

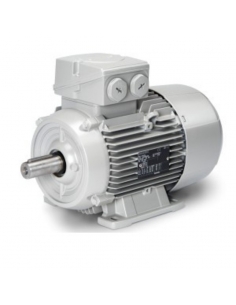

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Three-phase electric motor 3kW (4CV) asynchronous 230/400Vac, 2-pole (3000 rpm in synchronism) with flange B3 (Legs). INNOMOTICS SIMOTICS Flow series. This series of motors is ideal for standard applications, such as pumps, fans, conveyor belts.... It can be connected directly to the mains and also by frequency converters.

The efficiency class is IE3 and allows a standard connection of the motor to the mains or be controlled by frequency converter, either by V/f control or vector control.
Manufactured with cast aluminum housing.

Features

Manufacturer: INNOMOTICS
Series: SIMOTICS FL
Part number: 1LE0323-1AA4-2AA4
Motor type: squirrel cage asynchronous
Voltage: 230/400 V. III. 50/60 Hz
Power: 3 kW (4 HP)
Nominal torque: 10 Nm
Rated current: 5,7A at 400Vac
Maximum starting current: 7.8A at 400Vac
Power factor: 0.87
Number of poles: 2
Rotation speed: 2875 rpm
Energy rating: IE3
Degree of protection: IP55
Type of fastening: B3 flange (Legs)
Shaft diameter: Ø28mm
Case size: 100L
Color: Gray
Housing materialaluminium
Weight: 29kg
CE Marked

Dimensions

1) Measured through the bolt heads
2) This dimension is assigned in DIN EN 50347 to the indicated frame size

For further information you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.

Manual Simotics FL motors

Siemens Simotics Flow motors technical manual

Download (3.25MB)

ES-Engine Annex

Download (253.95KB)

Annex engines-FR

Download (262.97KB)

EN-Engine Annex

Download (631.69KB)

Annex motors-PT

Download (249.5KB)

IT-motor annex

Download (628.21KB)

Annex motors-DE

Download (638.45KB)
