Distributor 2 outputs female input 1/2 - Aignep
Distributor 2 outputs female input 1/2 - Aignep

Distributor 2 outputs female input 1/2 - Aignep

€18.86 Tax included

€15.85 tax excl.

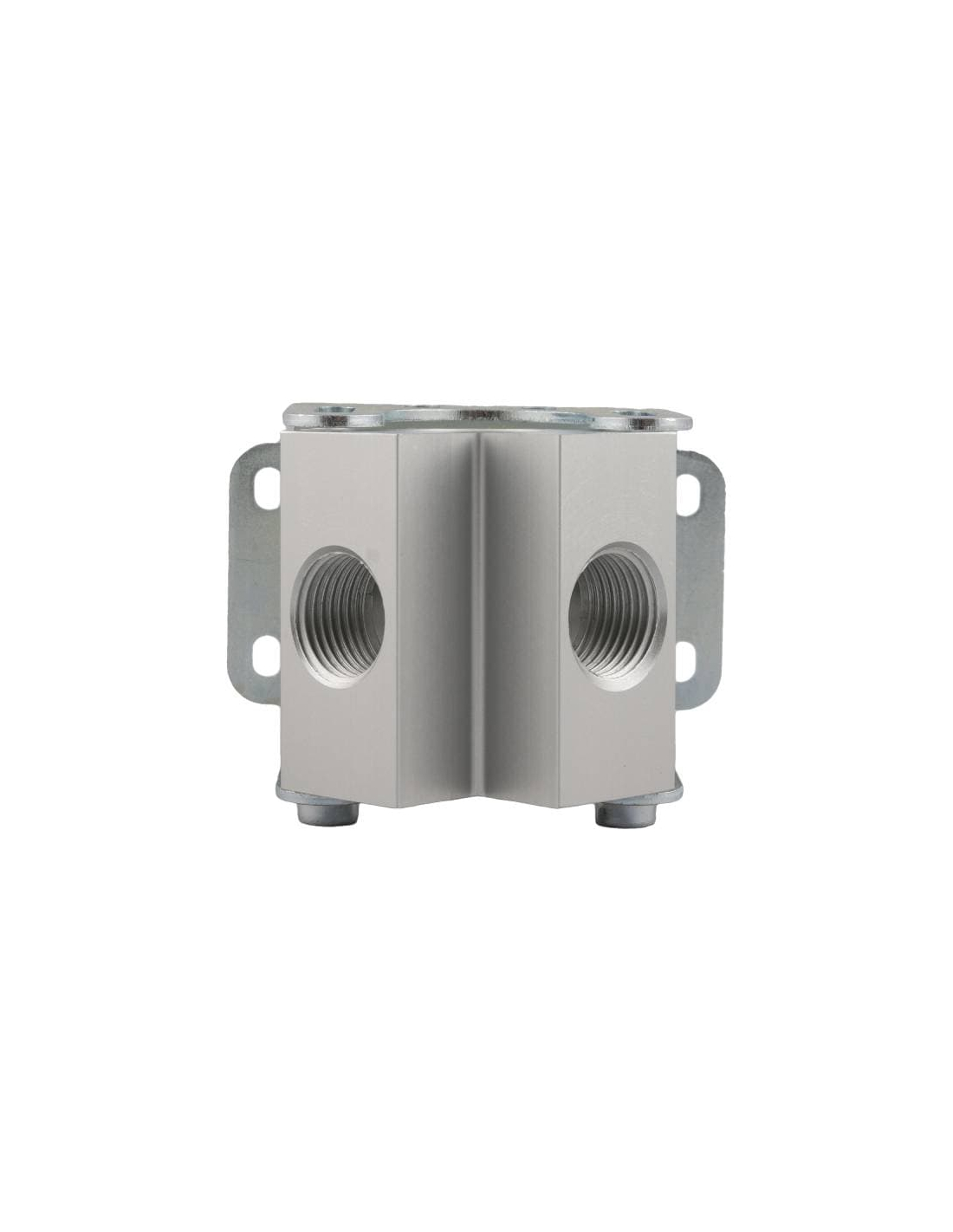

Distributor with two outlets for wall mounting, with inlet and outlets both with 1/2 cylindrical female thread. This wall socket allows you to install, in a simple and safe way, in the downpipes of a distribution network, the necessary accessories for the connection of machinery or pneumatic tools required to facilitate the efficient distribution of compressed air in the facilities.


Reference: 90642 1/2 1/2 2



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

Wall socket or wall support with two outlets with 1/2 cylindrical female thread and 1/2 cylindrical female thread inlet. This wall socket allows you to install, in a simple and safe way in the downpipes of a distribution network, the necessary accessories for the simultaneous connection of pneumatic tools required for the operation and equipment of the installation, such as air treatment units, pipe or pneumatic hose for the use of compressed air, etc...







Characteristics:

  • Manufacturer: Aignep
  • Reference: 90642 1/2 1/2 2
  • Series: Infinity
  • Number of distributor outputs: 2
  • Inlet thread: Female 1/2 (Gas cylindrical according to ISO 228)
  • Outlet thread: Female 1/2 (Gas cylindrical according to ISO 228)
  • Material: Nickel-plated brass
  • Application: Compressed air, vacuum, inert gas (nitrogen, argon)
  • Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
  • Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
  • All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)
















Material for professional use, install in compliance with the regulations in force at the installation site.
