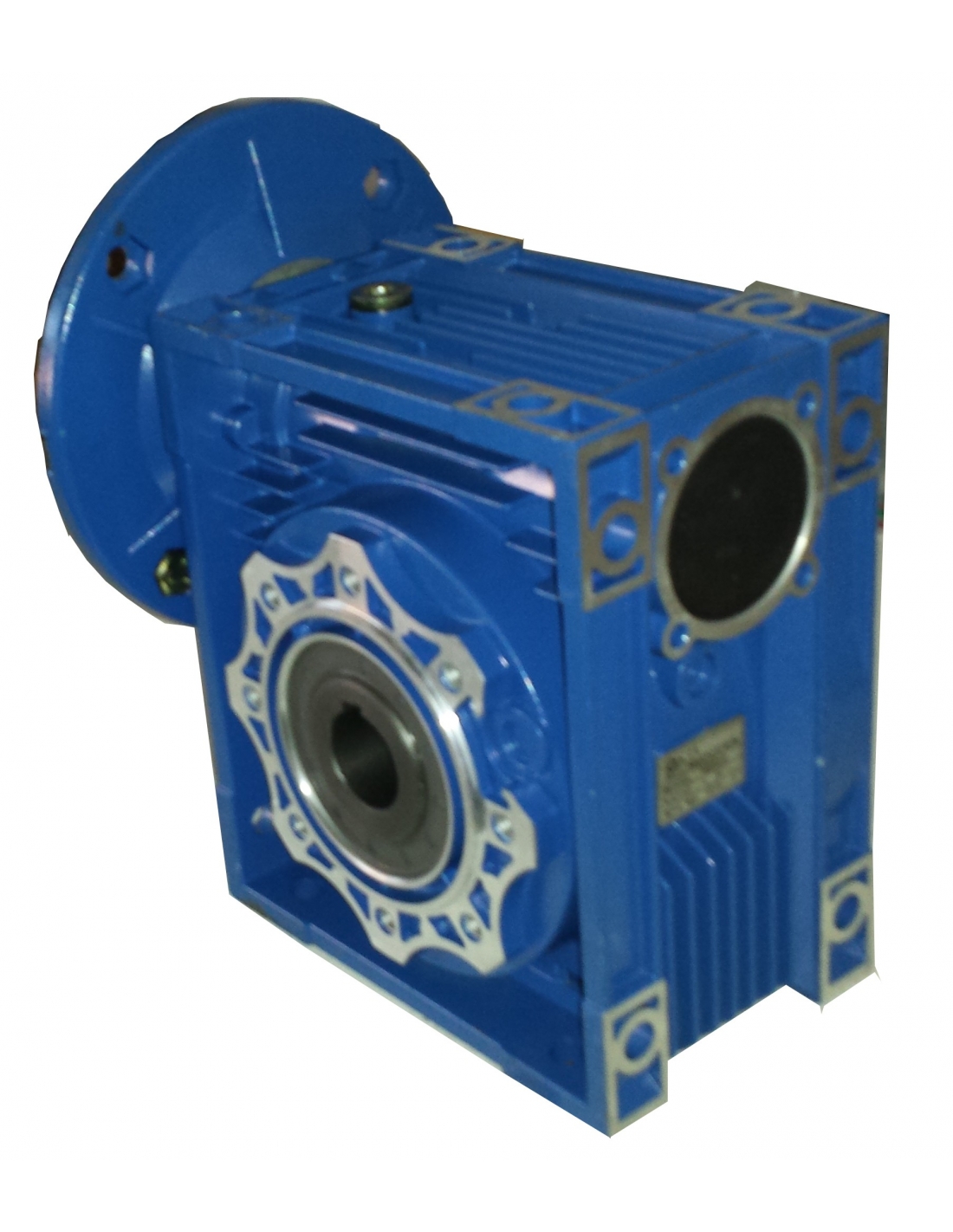

Endless crown reducer Size 75 Flange PAM 160/14 - Motor housing 71 B5
Endless crown reducer Size 75 Flange PAM 160/14 - Motor housing 71 B5
Endless crown reducer Size 75 Flange PAM 160/14 - Motor housing 71 B5
Endless crown reducer Size 75 Flange PAM 160/14 - Motor housing 71 B5

Endless crown reducer Size 75 Flange PAM 160/14 - Motor housing 71 B5

€187.10 Tax included

€157.23 tax excl.

With hollow output shaft of Ø28mm, and input flange PAM 160/14 (Ø Ext 160mm and Ø Input shaft 14mm) type B5, suitable for motors with housing size 90.

Reduction ratios: 60-80-100.

The powers of the usual engines at 1500 rpm are:

  • 0.5HP.
  • 0.75HP Reduced housing.
Reduction ratio
  • 60
  • 100
  • 80

No queries yet, leave the first!
Privacy
Shipments
Returns


Endless reducer crown size 75, compact execution and high performance, with hollow output shaft of 28mm and input shaft of 24mm.

This reducer size supports motors with flange B5 size 71, this flange size has an OExterior of 160mm and the reducer has an inlet shaft diameter of 14mm., PAM 160/14.

Dimensiones brida entrada reductor sinfin corona

  • Q: 160mm.
  • M:
  • N:
  • D: 14mm.

Engine power at 1500 rpm commonly used for this type of gearbox and with higher service factor fs≥1 are:

  • 0.5CV 1500rpm. Maximum reduction I-60-80y100.
  • 0.75CV 1500rpm. Reduced housing. 60-80y100.

The reduction ratios (i) available are from 60 to 100, depending on the input revolutions we can get the following revolutions on the output axis shown in the following table.

Tabla de revoluciones de salida reductores

Dimensiones reductor tamaño 75

You can download all the dimensions of the reducer by clicking on the "DOWNLOADS" tab.
