Single-phase motor 1.5Kw 2HP 230V 3000 rpm medium starting torque, Flange B3 foot

€208.63 Tax included

175.32 tax excl.

SY90S2B3

Single-phase electric motor 1.5kW (2HP) 230V 3000 rpm Flange B3 foot,half starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SY-90S-2 B3
  • Voltage: 230Vac 50Hz.
  • Power: 1.5Kw - 2HP
  • Type: Half boot torque.
  • Number of poles: 2.
  • Revs: 3000 rpm.
  • Flange: B3 foot.
  • Shaft diameter: 24mm.
  • Size: 90S
  • Energy efficiency: IE1.

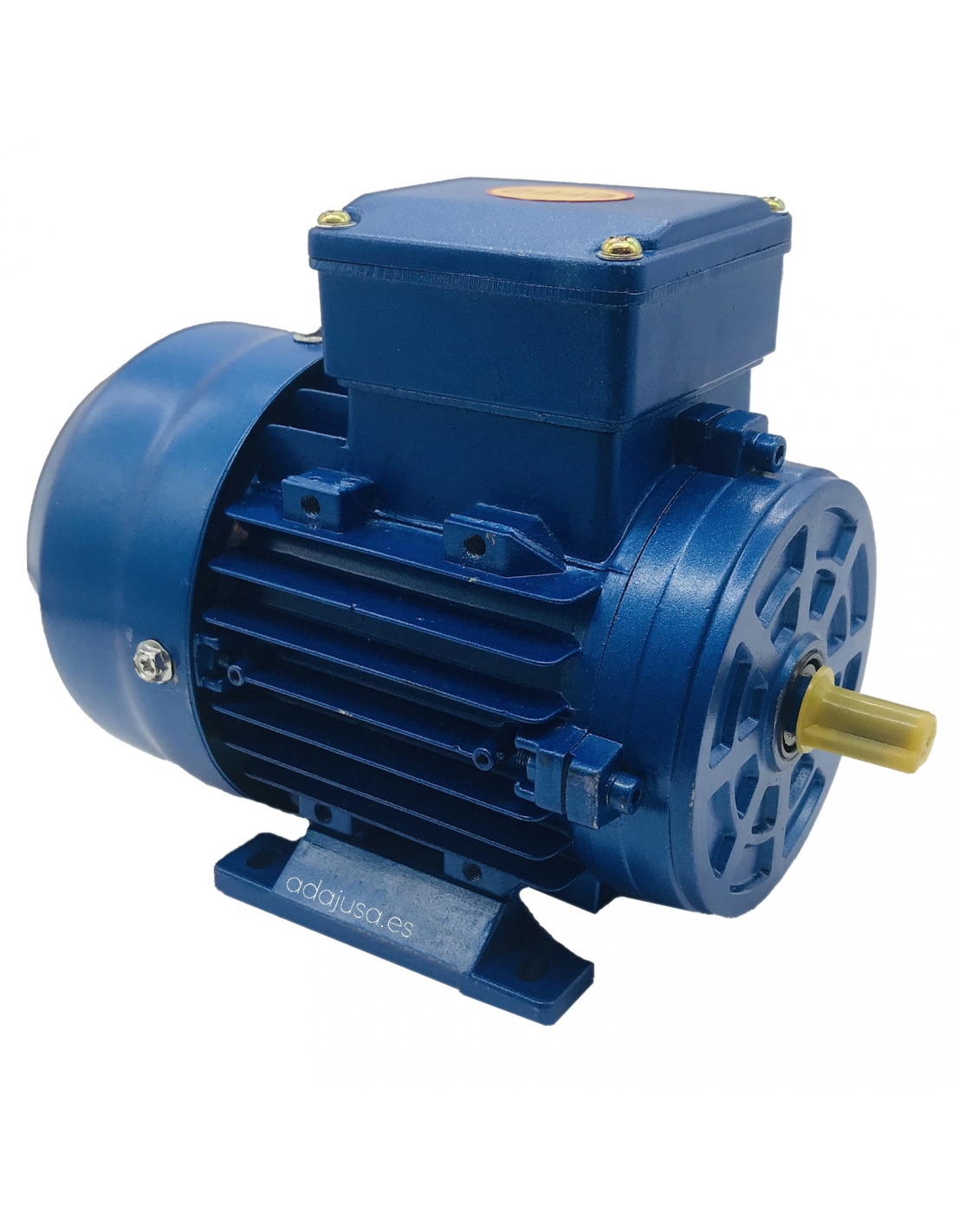

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Single-phase electric motor 1.5kw (2HP) 230Vac 50Hz , 2 poles (3000 rpm), B3 foot flange and half starting torque.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

Features:

  • Manufacturer/Importer: Motorseg
  • Reference: SY-90S-2 B3
  • Engine type: asynchronous squirrel cage.
  • Voltage: 230 Vac. 50Hz.
  • Power: 1.5 Kw (2HP).
  • Medium start torque.
  • Number of poles: 2 (3000 rpm).
  • Nominal intensity (In): 8.76A
  • Starting intensity (Ia): 40
  • Revs: 2820 rpm.
  • Yield: 76%
  • Power factor (Cos): 0.98
  • Maximum Torque / Nominal Torque (Tmax/Tn): 1.7
  • Starting torque / Nominal torque (Ts/Tn): 0.35
  • Permanent capacitor: 45uF/450V
  • Service: continuous S1
  • Degree of protection: IP55.
  • Clamping type: Flange B3 foot.
  • Shaft Diameter: .24mm
  • Housing size 90 (90S).
  • Color: Blue.
  • Housing material: Aluminum.
  • Sound level (dB): 80.
  • Weight: 14 Kg.
  • CE marking.
For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

Dimensiones motores monofasicos B3

To expand the information, you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations in the place of installation.

Questions

Question
Necesito un motor eléctrico para mover un compresor de aire antiguo de 2 CV . Monofásico 220 v. Eje 24 mm. Cuál me recomiendan. Puse un motor normal y a veces no arranca bien el compresor y acaba saltando el magnetotermico. Gracias
Answer
Buenos días.

Hay que montar el motor para el cual el compresor fue diseñado. Vamos a suponer que las revoluciones originales sean 1500 rpm.



  • Tensión: 230Vac 50Hz.
  • Potencia: 1,5Kw – 2CV
  • Tipo: Medio par de arranque.
  • Número de polos: 4.
  • Revoluciones: 1500 rpm.
  • Brida: B3 Patas
  • Diámetro de eje: 24mm.
  • Tamaño: 90(90L)
  • Eficiencia energética: IE1
Otro dato importante es:
  • Intensidad nominal (In): 9,12A
El fabricante indica que es obligatorio proteger el motor con un elemento que esté en relación con la intensidad máxima que es capaz de soportar.

Hay que ajustar el disyuntor al 90 % de la intensidad nominal    9,12 x 90%= 8,19 A


Tiene que mirar la plac ad e características y ver las revoluciones del motor original

No obstante, verifique que cumpla con sus especificaciones.

Saludos

Adajusa
Baltasar on 02/26/2023 13:33:56
