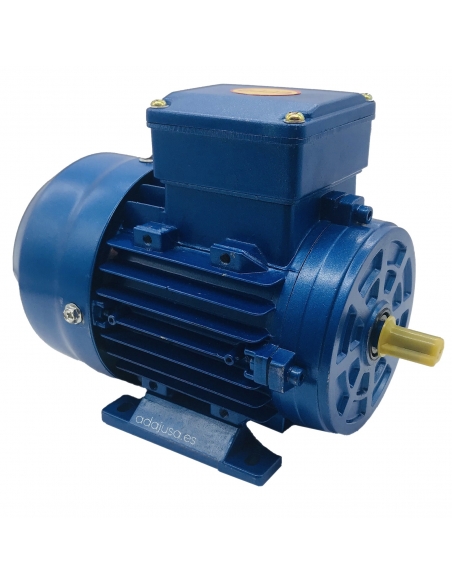

Single-phase motor 2.2Kw 3HP 230V 3000 rpm medium starting torque, B3 leg flange

€242.43 Tax included

203.72 tax excl.

SY90L2B3

Single-phase electric motor 2.2kW (3HP) 230V 3000 rpm Flange B3 legs , medium starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SY-90L-2 B3
  • Voltage: 230Vac 50Hz.
  • Power: 2.2Kw – 3HP
  • Type: Half starting torque.
  • Number of poles: 2.
  • Revolutions: 3000 rpm .
  • Flange: B3 Legs .
  • Shaft diameter: 24mm.
  • Size: 90L
  • Energy efficiency: IE1.

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

5 questions about the product
Privacy
Shipments
Returns


Single-phase electric motor of 2.2kw (3HP) 230Vac 50Hz, 2 poles (3000 rpm ), type B3 flange ( Legs ) and half starting torque.

Standardized single-phase electric motors for general uses, manufactured under European IEC regulations in aluminum with removable legs. Enameled copper windings with class F insulation. The casing is closed and has a seal on the output shaft that gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

By properly positioning the connection plates in the terminal box, the motor can rotate both right and left.

Characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SY-90L-2 B3
  • Motor type: squirrel cage asynchronous.
  • Voltage: 230 Vac. 50Hz.
  • Power: 2.2 Kw (3HP).
  • Medium starting torque.
  • Number of poles: 2 (3000 rpm ).
  • Nominal current (In): 12.7A
  • Starting current (Ia): 60
  • Revolutions: 2820 rpm .
  • Performance: 77%
  • Power factor (Cos): 0.98
  • Maximum torque / Nominal torque (Tmax/Tn): 1.7
  • Starting torque / Nominal torque (Ts/Tn): 0.35
  • Permanent capacitor: 60uF/450V
  • Service: continuous S1
  • Protection degree: IP55.
  • Fastening type: Flange B3 Legs .
  • Shaft diameter: Ø24mm
  • Case size 90 (90L).
  • Color blue.
  • Housing material : Aluminum.
  • Sound level (dB): 80.
  • Weight: 16.5 kg.
  • CE marking.

Dimensions of B3 single-phase motors

For more information, other powers or executions, consult.
As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Hola estaba interesado en compraros el motor de 3 CV monofásico. Pero no entiendo lo de medio par de arranque. Lo queria utilizar para un laborante de carpintería
Answer

Buenos días,

Como los motores monofásicos tienen un peor rendimiento comparado con los trifásicos, sobre todo durante el proceso de arranque, los motores de alto par incorporan un circuito que ayuda al motor a arrancar, eso si, aumnetando el pico de intensidad inicial durante el proceso de arranque. Todo el ciclo lo realiza el motor automaticamente, usted solo tiene que dar tensión al motor y este arranca.

Saludos

Francisco on 10/04/2018 23:24:49
Question
Buenas, Existen con el eje de 20mm? Gracias
Answer

Buenos días,

No le puedo confirmar si existen o no, nosotros no los tenemos, el eje normailizado para este tamaño de motor es de 24mm.

Salduos

Maki on 08/12/2018 18:30:52
Question
Boa tarde Recebi o motor foi rápido Não houve cuidado no transporte e tem um apoio partido,é possível peça de substituição ? Obrigado António Bugalho
Answer

Boas dias,

Si, es posible, indique el numero de referencia del pedido para proceder a su envío, y si es posible hacer una fotografia a la placa de caracteristicas del motor, mejor.

Obrigado

António Bugalho on 07/27/2018 18:36:15
Question
Hola buenas. necesito un motor monofasico de 2,2kw y 3000 rpm a cuyo eje he de acoplar una polea con agujero de diámetro 19mm. Va a ser destinado a hacer funcuinar un compresor de aire. ¿Disponen de algún motor de este tipo?
Answer

Buenos días,

El eje normalizado para este tamaño de motor es de Ø24 y en monofásico no disponemos de la opción carcasa reducida.

Saludos

Ricardo on 06/03/2018 16:51:46
Question
Hay motores monofásico 3cv de más de 2860rm
Answer

Buenos días,

Los motores asincronos que mas revoluciones dan conectados directamente a la red son los de 2 polos, un motor de 2 polos conectado a la red de 50Hz dara (en sincronismo) giarará a:

rpm= (50hz*60seg) = 3000.

El regimen se giro real, siempre será menor a este (deslizamiento), aproximadamente un 5% dependiendo del motor.

Saludos

Valentín on 07/28/2017 19:52:19

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

8 other products in the same category:

Single-phase electric motor 1.5Kw 2HP 230V Flange B3 foot 3000 half torque start | ADAJUSA
Single-phase motors 3000 rpm flange B3 (foot) Medium torque

Single-phase motor 1.5Kw 2HP 230V 3000 rpm medium starting torque, Flange B3 foot

Generico-MOT
SY90S2B3
€208.63 (€175.32 tax excl.)
Single-phase electric motor 1.5kW (2HP) 230V 3000 rpm Flange B3 foot,half starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY-90S-2 B3 Voltage: 230Vac 50Hz. Power: 1.5Kw - 2HP Type: Half boot torque. Number of poles: 2. Revs: 3000 rpm. Flange: B3 foot. Shaft diameter: 24mm. Size: 90S Energy efficiency:...
Single-phase electric motor 0.75Kw 1HP 230V Flange B3 legs 3000 medium starting torque | ADAJUSA | price
Single-phase motors 3000 rpm flange B3 (foot) Medium torque

Single-phase motor 0.75Kw 1HP 230V 3000 rpm half starting torque, B3 leg flange

Generico-MOT
SY8012B3
€145.72 (€122.45 tax excl.)
Single-phase electric motor 0.75kW (1HP) 230V 3000 rpm Flange B3 legs , medium starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY-80M1-2 B3 Voltage: 230Vac 50Hz. Power: 0.75Kw - 1HP Type: Half starting torque. Number of poles: 2. Revolutions: 3000 rpm . Flange: B3 Legs . Shaft diameter: 19mm. Size:...
Single-phase electric motor 0.37Kw 0.5HP 230V Flange B3 foot 3000 half torque start | ADAJUSA
Single-phase motors 3000 rpm flange B3 (foot) Medium torque

Single-phase motor 0.37Kw 0.5HP 230V 3000 rpm medium starting torque, Flange B3 foot

Generico-MOT
SY7112B3
€105.32 (€88.50 tax excl.)
Single-phase electric motor 0.37kW (0.5HP) 230V 3000 rpm Flange B3 foot,half starting torque, aluminum housing. Manufactured under European IEC regulations. Voltage: 230Vac 50Hz. Power: 0.37Kw - 0.5HP Type: Half boot torque. Number of poles: 2. Revs: 3000 rpm. Flange: B3 foot. Shaft diameter: 14mm. Size: 71M1 Energy efficiency: IE1....
Single-phase electric motor 0.55Kw 0.75HP 230V Flange B3 legs 3000 medium starting torque | ADAJUSA | price
Single-phase motors 3000 rpm flange B3 (foot) Medium torque

Single-phase motor 0.55Kw 0.75HP 230V 3000 rpm half starting torque, B3 leg flange

Generico-MOT
SY7122B3
€111.94 (€94.07 tax excl.)
Single-phase electric motor 0.55kW (0.75HP) 230V 3000 rpm Flange B3 legs , half starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY-71M2-2 B3 Voltage: 230Vac 50Hz. Power: 0.55Kw - 0.75HP Type: Half starting torque. Number of poles: 2. Revolutions: 3000 rpm . Flange: B3 Legs . Shaft diameter: 14mm. Size:...
Single-phase electric motor 0.12Kw 0.17HP 230V Flange B3 foot 3000 half torque start | ADAJUSA
Single-phase motors 3000 rpm flange B3 (foot) Medium torque

Single-phase motor 0.12Kw 0.17HP 230V 3000 rpm medium starting torque, Flange B3 foot

Generico-MOT
SY5622B3
€78.54 (€66.00 tax excl.)
Single-phase electric motor 0.12kW (0.17HP) 230V 3000 rpm Flange B3 foot,half starting torque, aluminum housing. Manufactured under European IEC regulations. Voltage: 230Vac 50Hz. Power: 0.12Kw - 0.17HP Type: Half boot torque. Number of poles: 2. Revs: 3000 rpm. Flange: B3 foot. Shaft diameter: 9mm. Size: 56M2. Energy efficiency: IE1....
Single-phase motor 0.09Kw 0.12CV 230V 3000 rpm medium starting torque, B3 foot flange
Single-phase motors 3000 rpm flange B3 (foot) Medium torque

Single-phase motor 0.09Kw 0.12HP 230V 3000 rpm medium starting torque, Flange B3 foot

Generico-MOT
SY5612B3
€75.09 (€63.10 tax excl.)
Single-phase electric motor 0.09kW (0.12HP) 230V 3000 rpm Flange B3 foot,half starting torque, aluminum housing. Manufactured under European IEC regulations. Voltage: 230Vac 50Hz. Power: 0.09Kw - 0.12HP. Type: Half boot torque. Number of poles: 2. Revs: 3000 rpm. Flange: B3 foot. Shaft diameter: 9mm. Size: 56M1. Energy efficiency: IE1....
Single-phase electric motor 0.25Kw 0.33HP 230V Flange B3 legs 3000 medium starting torque | ADAJUSA | price
Single-phase motors 3000 rpm flange B3 (foot) Medium torque

Single-phase motor 0.25Kw 0.33HP 230V 3000 rpm half starting torque, B3 leg flange

Generico-MOT
SY6322B3
€88.90 (€74.71 tax excl.)
Single-phase electric motor 0.25kW (0.33HP) 230V 3000 rpm Flange B3 legs , half starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY-63M2-2 B3 Voltage: 230Vac 50Hz. Power: 0.25Kw - 0.33HP Type: Half starting torque. Number of poles: 2. Revolutions: 3000 rpm . Flange: B3 Legs . Shaft diameter: 11mm. Size:...
Single-phase electric motor 1.1Kw 1.5HP 230V Flange B3 foot 3000 half torque start | ADAJUSA
Single-phase motors 3000 rpm flange B3 (foot) Medium torque

Single-phase motor 1.1Kw 1.5HP 230V 3000 rpm medium starting torque, Flange B3 foot

Generico-MOT
SY8022B3
€154.33 (€129.69 tax excl.)
Single-phase electric motor 1.1kW (1.5HP) 230V 3000 rpm Flange B3 foot,half starting torque, aluminum housing. Manufactured under European IEC regulations. Reference: SY-80M2-2 B3 Voltage: 230Vac 50Hz. Power: 1.1Kw - 1.5HP Type: Half boot torque. Number of poles: 2. Revs: 3000 rpm. Flange: B3 foot. Shaft diameter: 19mm. Size: 80M2 Energy...

Customers who bought this product also bought:

Flexible unipolar cable 1.5 mm2 grey
Special material, PayPal payment not accepted
Cables for electrical installations

Flexible unipolar cable 1.5 mm halogen-free gray color

Topcable
H07Z1AS-G15M
€0.69 (€0.58 tax excl.)
Flexible 1.5mm2 halogen-free section cable, grey, specially designed for internal wiring of electrical cabinets, switch boxes and electrical appliances. Designed under CPR (EN 50575). Series: ToxFree ZH - H07Z1-K (AS). Color: Grey. Section: 1.5mm2. Price per meterMaterial cut to size, no return or cancellation of the order is allowed ...

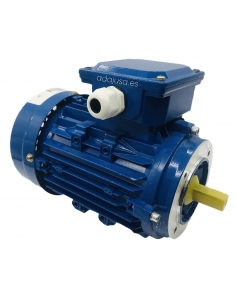

Three-phase motor 0,75Kw 1CV 230/400V 3000 rpm IE1 Flange B14 reduced housing
