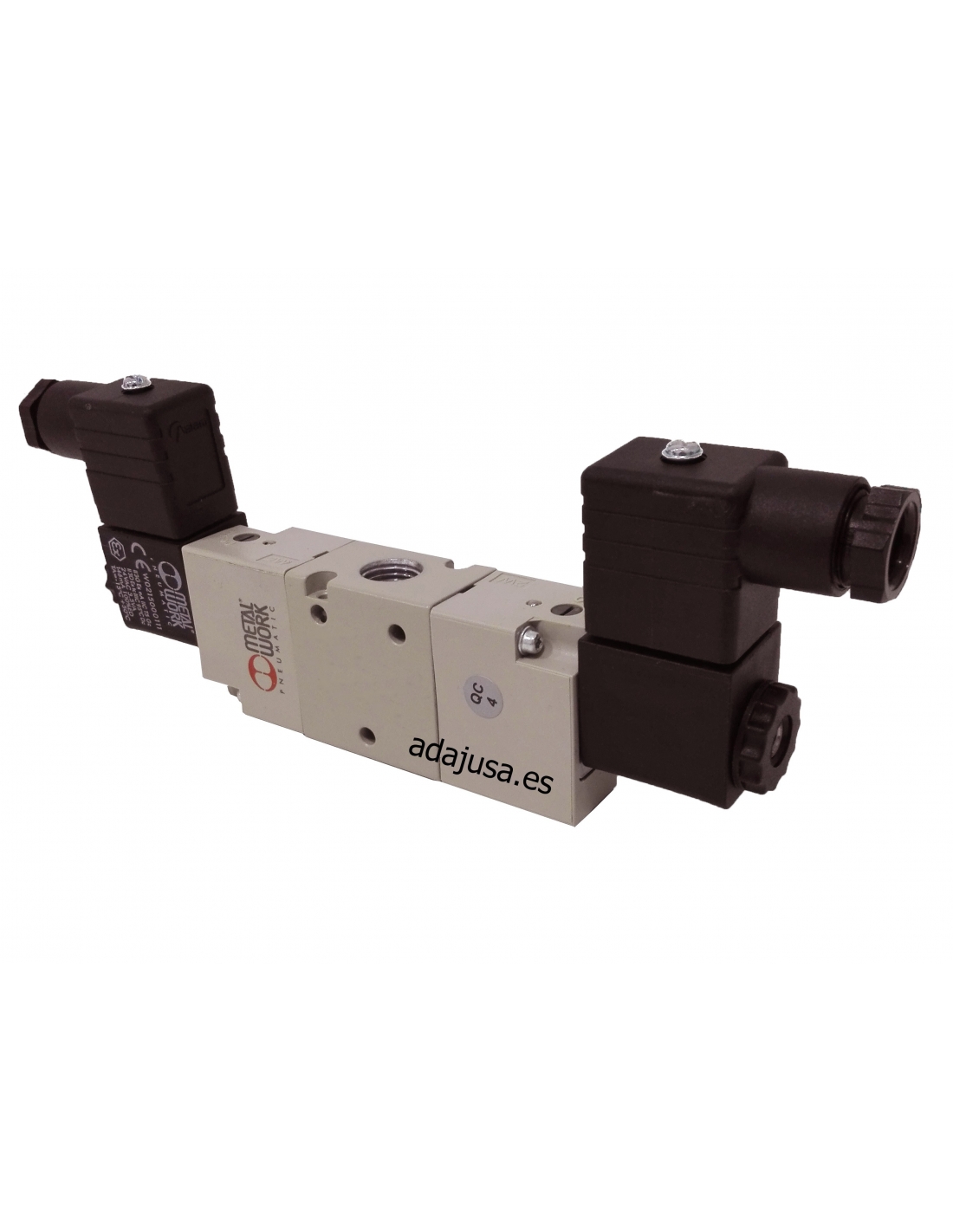

Double solenoid valve 1/8 3/2 ways NC 24 Vdc - Metal Work

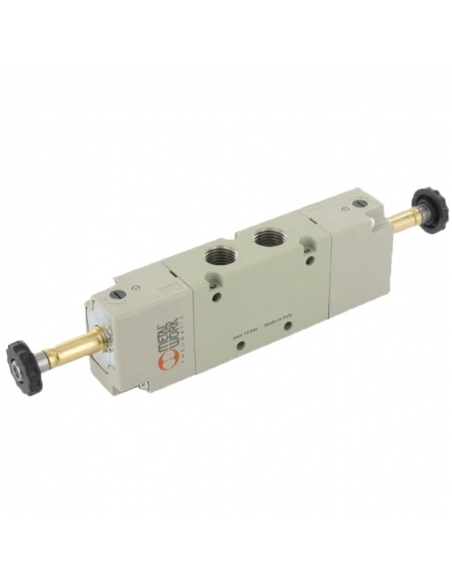

Double pneumatic solenoid valve 1/8" 3/2 way NC. The solenoid valve is normally closed (NC), i.e. without voltage on the coil, the inlet is not connected to the outlet, i.e. there is no air pressure at the outlet, the outlet is connected to the exhaust of the valve. When the coil is energized, the solenoid valve is activated, there is air circulation between the inlet and outlet of the solenoid valve .

Coils solenoid valve 24Vdc 2W and connectors 22 mm.

• Solenoid valve 1/8" 3/2 NC
• 2 Coils 24 Vdc - 2W

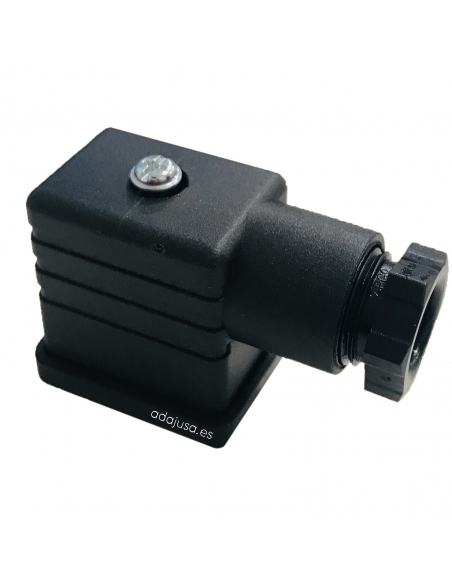

• 2 Plastic connectors size 22

Technical characteristics:

• Manufacturer Metal Work
• Part number: solenoid valve : SOV 28 SOS NC Code: 7010023100
• Type of threads: G 1/8"
• Bistable bar: 2.5 ÷ 10
• Minimum assistance pressure bar: 2.5
• Working temperature °C: -10 ÷ +60
• Nominal diameter mm: 5
• Conductance C Nl/min - bar: 121,43
• Critical ratio b bar/bar: 0,32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
• Flow rate at 6 bar ΔP 1 bar Nl/min: 550
• TRA/TRR monostable at 6 bar ms: 15/35
• TRA/TRR bistable at 6 bar ms: 20/20
• Tension tolerances %: -10 ÷ +15
• Class of isolation: F 155
• Rated voltage: 24Vdc.
• Rated power: 2W.

Equipment for professional use, install in compliance with the regulations in force at the place of installation.
