Double solenoid valve 1/8 3/2 assisted tracks 24Vca NC - Metal Work

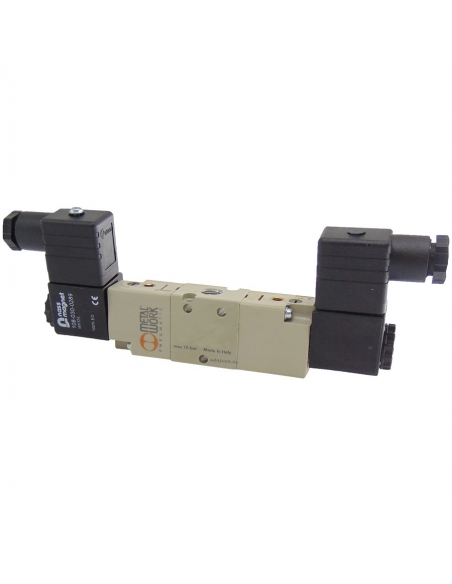

Double 1/8" 3/2 way NCpneumatic assisted doublesolenoid valve. The solenoid valve is normally closed (NC), i.e. without voltage on the coil, the inlet is not connected to the outlet, i.e. there is no air pressure at the outlet, the outlet is connected to the exhaust of the valve. When the coil is energized, the solenoid valve is activated, there is air circulation between the inlet and outlet of the solenoid valve .

With plastic connectors size 22 and coils 24 Vac 3,5 VA

The supply includes:

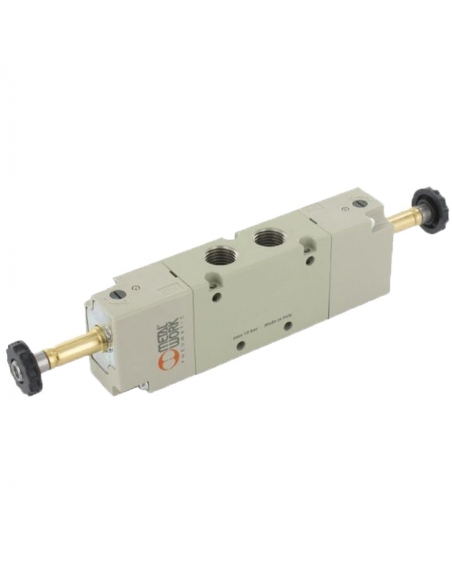

• Double solenoid valve 1/8" 3/2 assisted NC

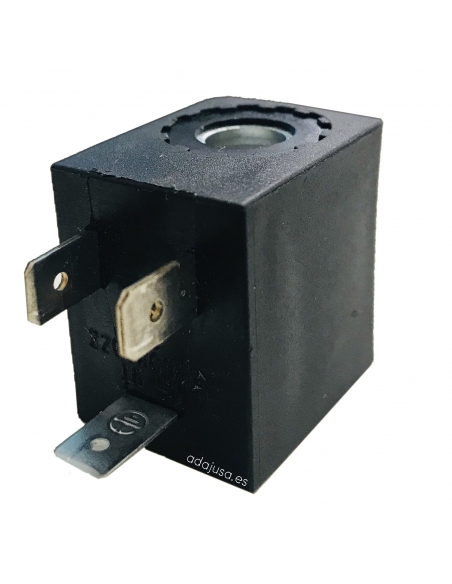

• 2 Coils 24 Vac 3,5VA

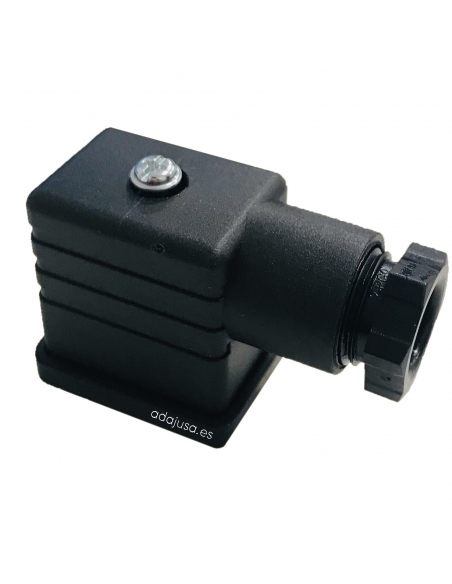

• 2 Connectors

Technical characteristics:

• Manufacturer Metal Work
• Part number: Metal Work: SOV 28 SES NC Code: 7010023400
• Type of threads: G 1/8"
• Bistable bar: Vacuum ÷ 10
• Minimum assistance pressure bar: 2.5
• Working temperature °C: -10 ÷ +60
• Nominal diameter mm: 5
• Conductance C Nl/min - bar: 121,43
• Critical ratio b bar/bar: 0,32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
• Flow rate at 6 bar ΔP 1 bar Nl/min: 550
• TRA/TRR monostable at 6 bar ms: 15/35
• TRA/TRR bistable at 6 bar ms: 20/20
• Voltage tolerances %: -10 ÷ +15
• Class of isolation: F 155
• Rated voltage: 24Vac
• Rated power: 3,5VA

Equipment for professional use, install in compliance with the regulations in force at the place of installation.
