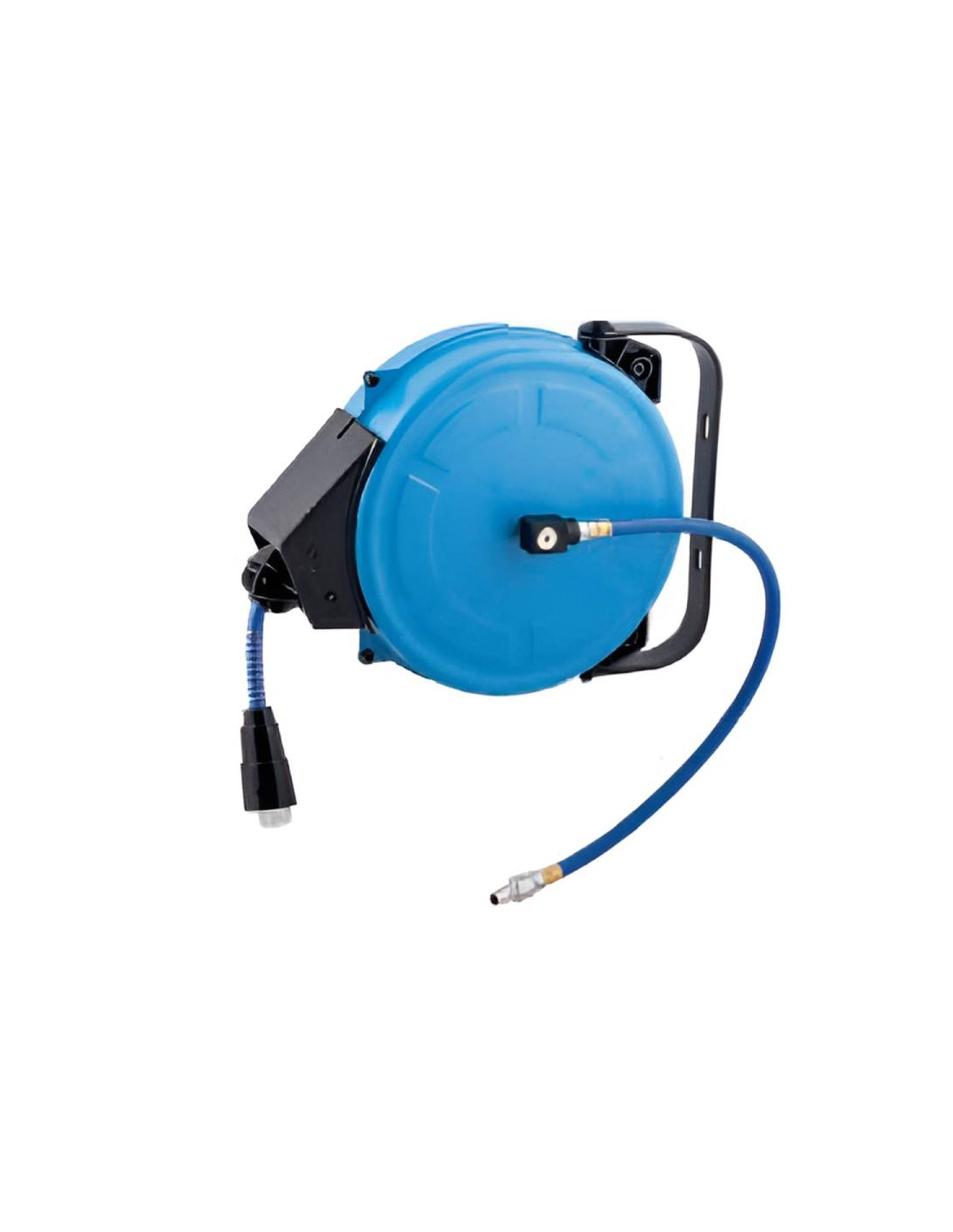

Automatic metallic hose reel or hose reel for wall or ceiling mounting, includes a flexible tube of polyurethane with an external diameter of 12mm and an internal diameter of 8mm, length 9+1 meters and a 1.5 meter hose for the air supply, both with 1/4" outlet couplings. The tube for the air intake is screwed to the hose reel casing by means of a 360º rotating plug for greater convenience in installation and ease of use.
By means of a recovery spring, the tube or hose can be automatically collected progressively and adjusted to the desired length for convenient use and handling, thus preventing it from lying on the floor in workshops and industries, thus extending its useful life and leaving the work area clear. It has a stop stop that allows to define or fix the length of the tube that can be left outside the casing (without winding) when the tube collector is not in use, the position of this stop stop stop can be easily modified manually.
High-strength metal housing and metal bracket for convenient and safe wall or ceiling mounting, and ideal for preventing falls in working environments; swivel bracket allows the tube to be oriented according to the desired direction of use, thus facilitating its use by operators. Ideal for powering portable pneumatic tools, proximity work...in workshops and industrial environments.
Characteristics:
- Manufacturer: Aignep
- Part number: 90825M
- Material for tube collector: Steel
- Pneumatic tube material Polyurethane
- Tube size: 8x12mm
- Outer tube diameter: 12mm
- Tube inner diameter: 8mm
- Tube length: 9 + 1m
- Length of feeding tube: 1,5m
- Outlet fitting: 1/4
- Inlet fitting: 1/4
- Fluid: Air
- Maximum pressure: 20bar
- Dimensions: 360 x 145 x 370mm
- Weight: 5,5Kg
Material for professional use, install in compliance with the regulations in force at the place of installation.
