Simple sprockets Z16 taper lock T2012 1 x 17.02 16B-1 ISO 606

€53.94 Tax included

€45.33 tax excl.

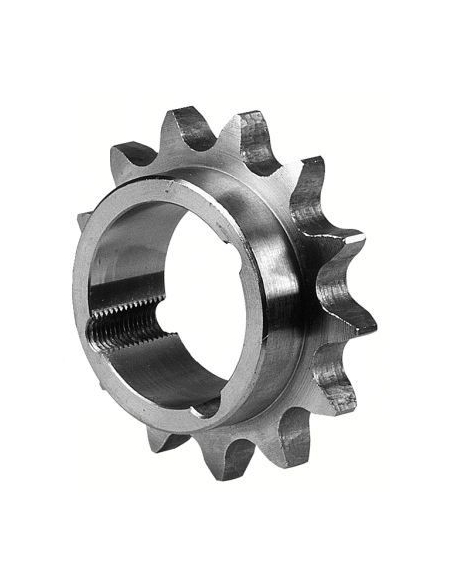

Simple sprockets for 2012 roller chain cap taper lock 16B-1 according to European standard DIN ISO 606

Reference: PINHON Z16 1-T2012

Teeth: 16

ISO: 16B-1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for 2012 roller chain cap taper lock 16B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z16 1-T20128


Characteristics:

  • 1" x 17.02mm ISO 16B-1
  • 25.4 x 17.02 mm
  • Teeth: 16
  • Taper Lock: 2012
  • Outer Diameter (S): 141.0
  • Primitive diameter (Dp): 130.20
  • Hub diameter (d): 90
  • Width (H): 32


Material for professional use, install in compliance with the regulations in force at the place of installation.
