Double quick connection terminal 3 poles 32A
Double quick connection terminal 3 poles 32A
Double quick connection terminal 3 poles 32A
Double quick connection terminal 3 poles 32A

Double quick connection terminal 3 poles 32A

€0.95 Tax included

€0.80 tax excl.

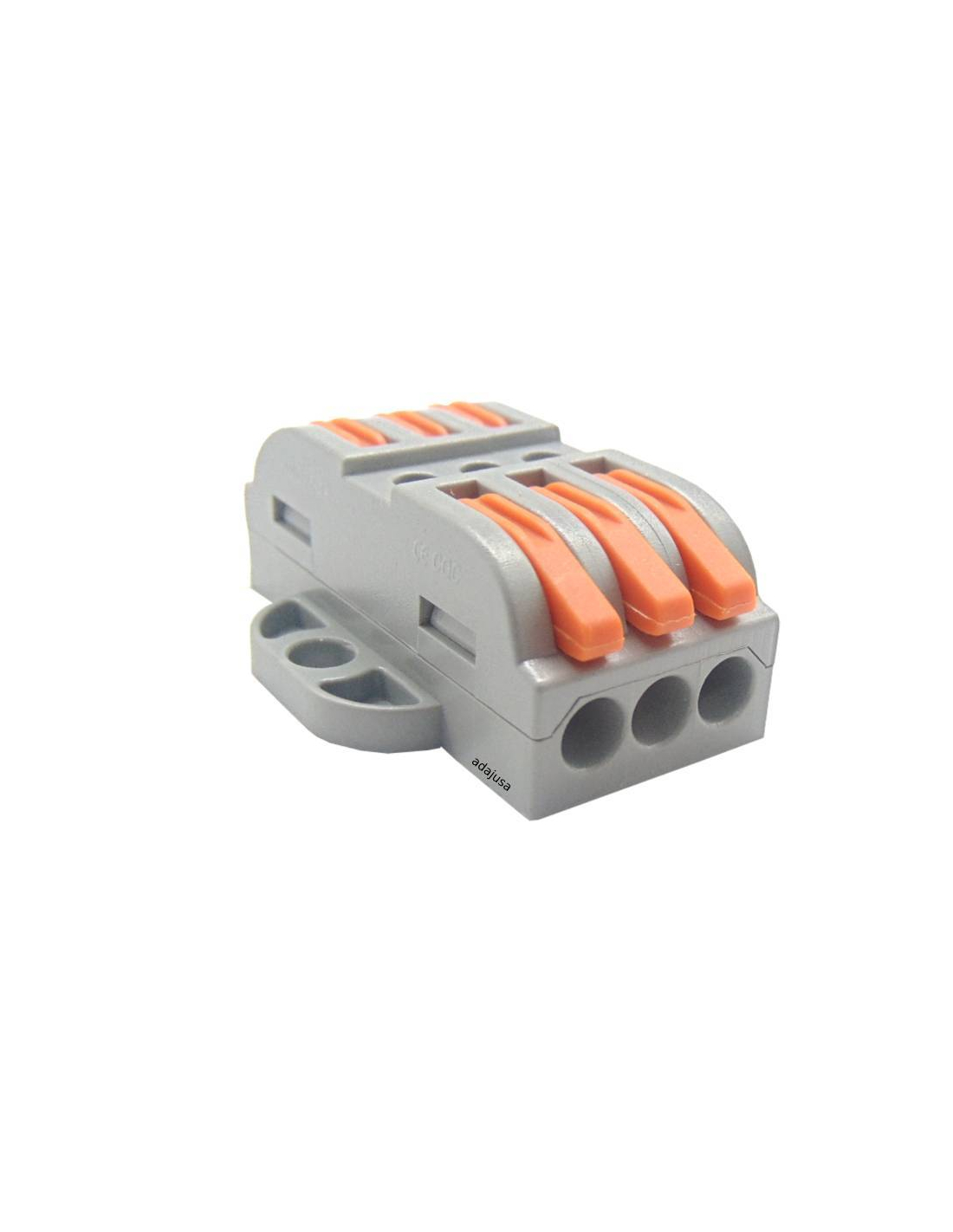

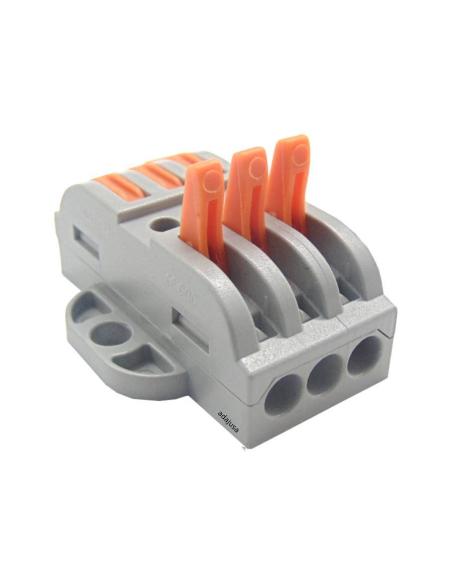

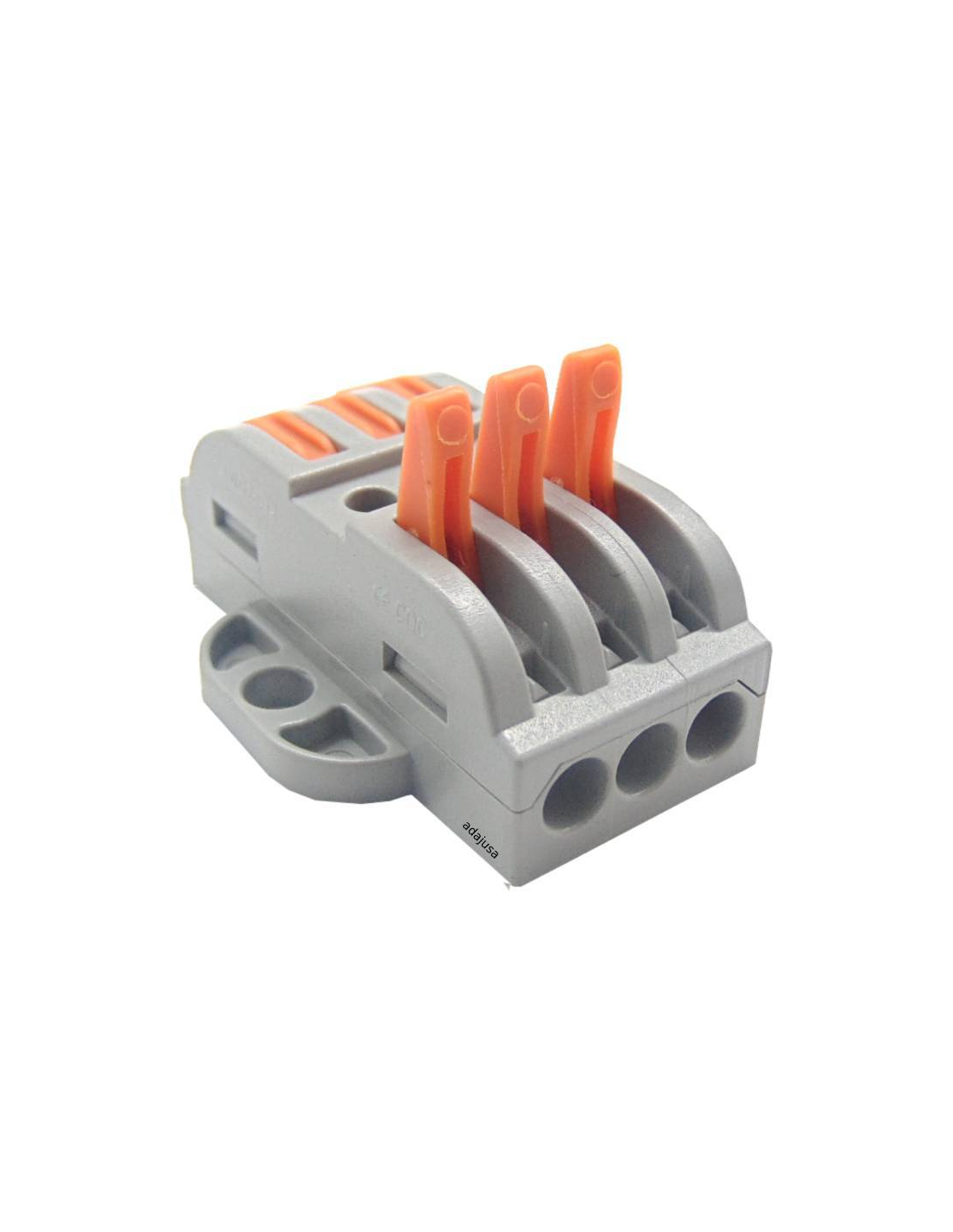

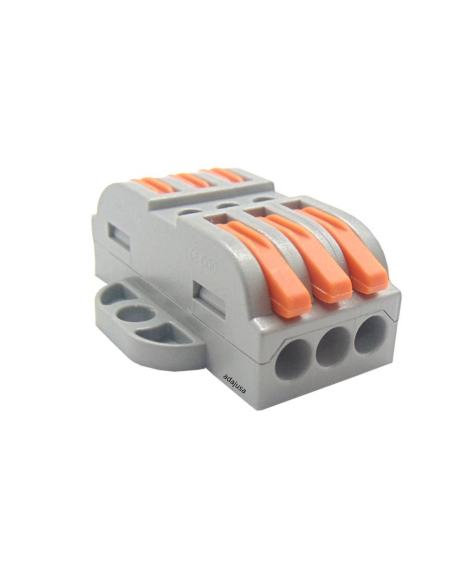

32A, 400Vac 3-pole quick-connect double terminal for conductors from 0.5 to 4mm2. Screwless quick connection that guarantees a simple and safe electrical connection.


Part number: OVOFT33


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!

Double 3-pole quick connection terminal 32A 400Vac, for rigid and flexible conductors with cross-section between 0.5 - 4mm2. Screwless quick connection by means of a push-in system that allows easy connection and disconnection of the conductor.

Its connection system allows the terminal to be reusable as many times as necessary. Ideal for secure electrical connections, they guarantee an optimal termination without the need for tools while speeding up installation. Compact size.





Features
  • Manufacturer/Supplier: Tracon
  • Product reference: OVOFT33
  • Conductor cross section: 0.5 - 4mm²
  • Rated current: 32A
  • Rated voltage: 400V
  • Number of poles: 3
  • Insulation material: Polycarbonate (PC)
  • Material of contact: Tin-plated electrolytic copper
  • Flammability class of insulation material according to UL94: V0
  • Operating temperature: -10oCto +55oC
  • Degree of protection: IP20


Dimensions:


L: 39.3mm; W:30.3mm; H: 14.5mm





Material for professional use, install in compliance with the regulations in force at the place of installation .
