Cap from friction SF-1F 06080C type PAF 0608 P10 PTFE - ADAJUSA
Cap from friction SF-1F 06080C type PAF 0608 P10 PTFE - ADAJUSA

Walloon plain bearing SF1F 06080C type PAF 0608 P10 - ISB

€0.48 Tax included

€0.40 tax excl.

Self-lubricating flange type plain bearing SF1F 6x8x8mm PAF P10, PTFE interior with a sheet steel base on which a thick porous tin/bronze layer is sintered.

Used in hydraulic and mechanical cylinders, hydraulic vehicles, automobiles, motorcycles, agricultural machines, textile machines, printing machines, gymnastic apparatus and many other applications.

Reference: SF1F 06080C

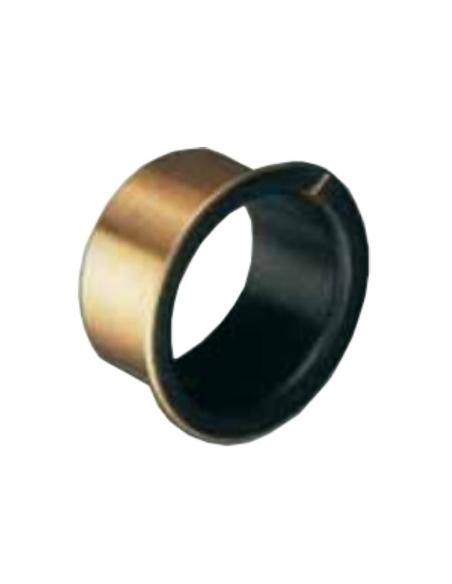

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Wall-type dry sliding bushings, maintenance-free self-lubricating friction bushing (bearing) and high load capacity, both static and dynamic.
During a short break-in period, minute amounts of the PTFE material are transferred from the break-in layer to the contact surfaces. Once this transfer has taken place, the characteristic low friction and wear properties of these plain bearings are achieved.

Characteristic:

  • Manufacturer: ISB
  • Type: SF1F
  • Reference: 06080C
  • They do not need lubrication
  • High load capacity -140N/mm2
  • High slip and low static and dynamic friction coefficient
  • Good dimensional stability and thermal conductivity.
Dimensions:
  • Inner diameter (d): 6mm
  • Outer diameter (D1): 8mm
  • Outer diameter (D2): 12mm
  • Length(L): 8mm
Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
