SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA

V-belt pulley 236mm 2 slot for shaft diameter...

V-belt pulley 236mm 2 slot for shaft diameter 48mm type SPA

€144.18 Tax included

€121.16 tax excl.

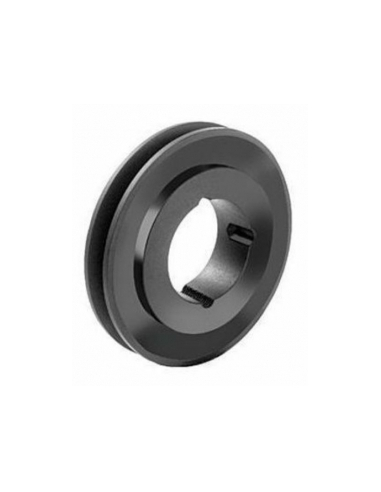

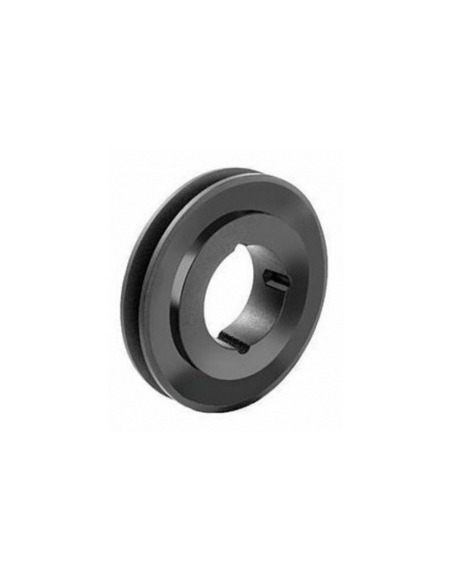

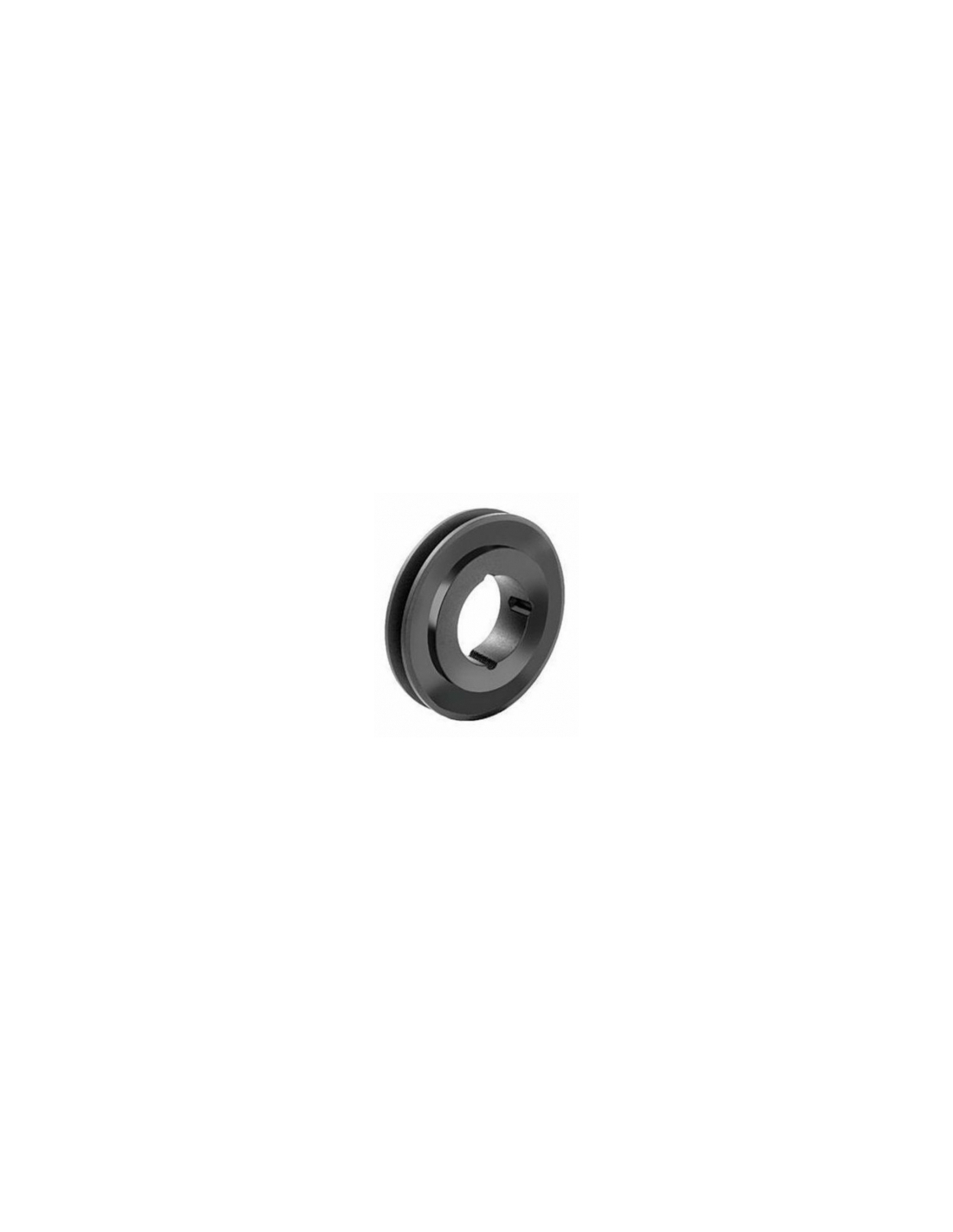

Pulley for V-belts Ø236mm, from 2 slot, with taper lock with 48mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211

Type of belts: "V" profile type A and SPA
Pulley diameter (Dp): 236 mm
Number of slots for belts: 2
Taper: center shaft diameter of 48mm with 14mm key

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

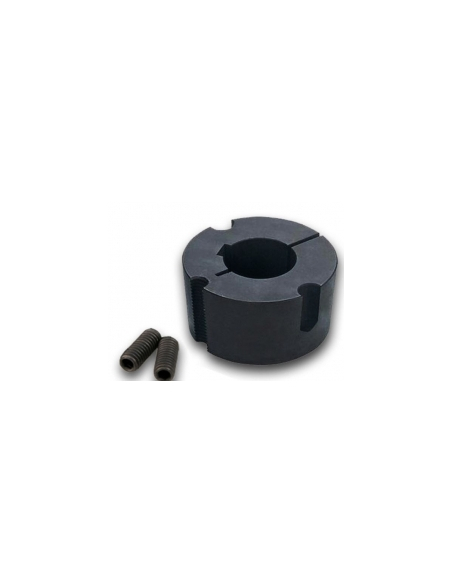

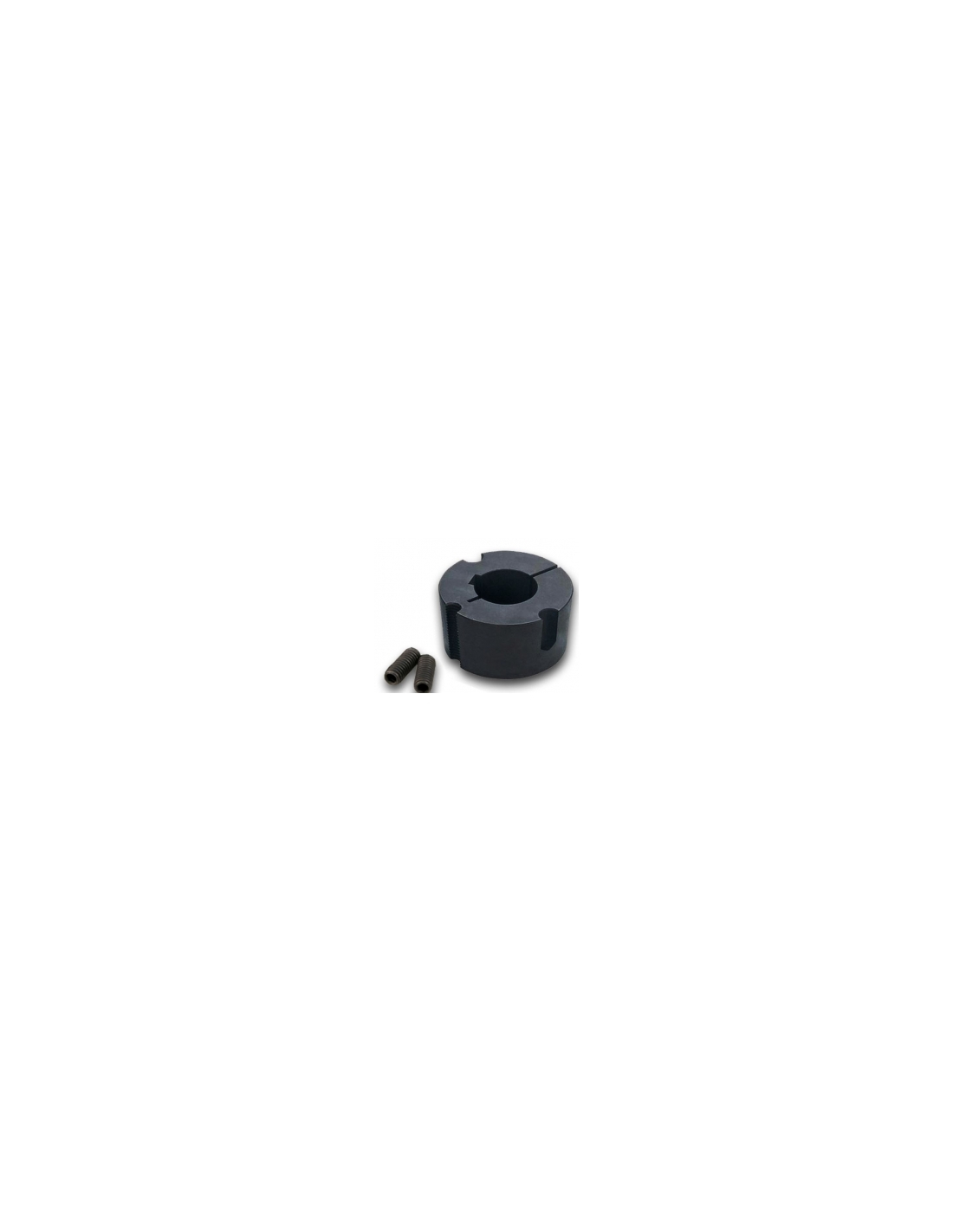

Conical bushing - taper lock size 2517 Shaft diameter-48 mm

€31.50

Pulley V-belt SPA 236x2 slots taper T2517

€112.68

No queries yet, leave the first!

Privacy

Shipments

Returns

Pulley for "V" profile V-belts, for mechanical transmission. Manufactured in cast iron and steel, and according to DIN2211 - ISO4183 standard.

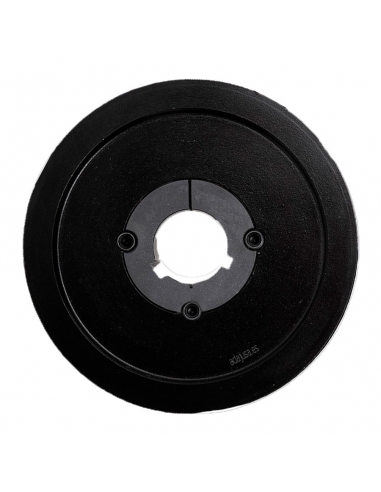

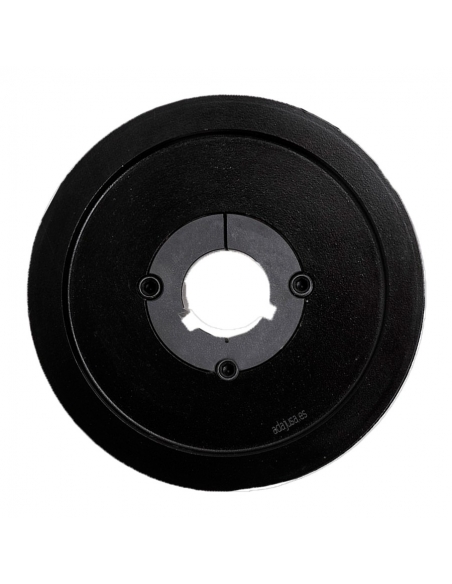

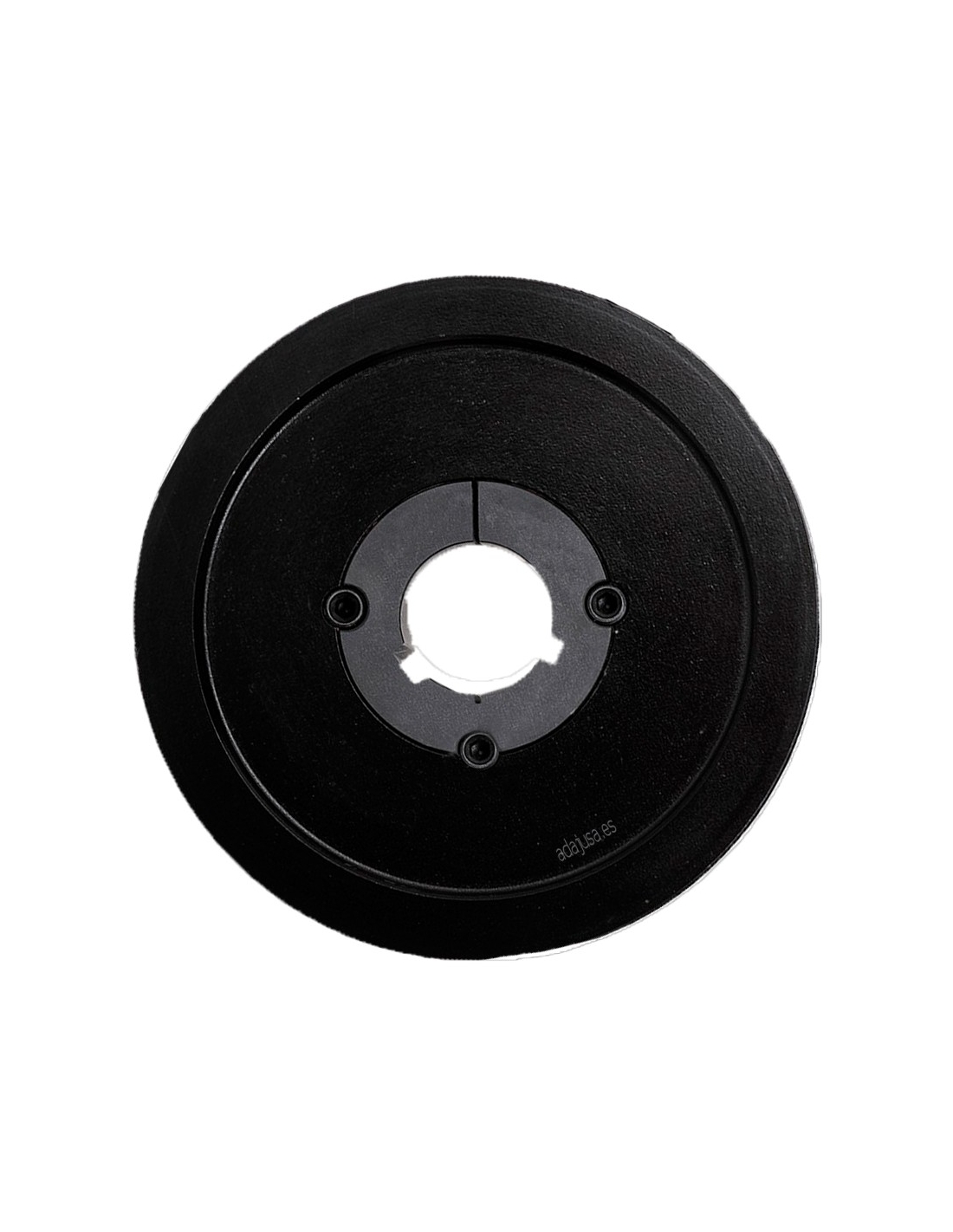

Machined V-belt pulley with tapered bush "Taper Lock", with bore and keyway already machined to 48mm diameter and with 14mm keyway, with all set screws and bolts, manufactured in machined iron GG25.

Pulley dimensions:

(Dp): 236 mm
(Od): 241,5 mm
(E): 12 mm
(F): 35 mm
(J): 202
(L): 45 mm
(M): 10 mm
(N): 124
Shaft and keyway dimensions:

Dimensiones de taladro para chaveteres adajusa

Shaft diameter: 48mm
Keyway (b): 14mm
Dimension t: 50,8mm

Note: The reference of the taper and the pulley supplied may vary, always adjusting to the dimensions requested.

Material for professional use, install in compliance with the regulations in force at the place of installation.
