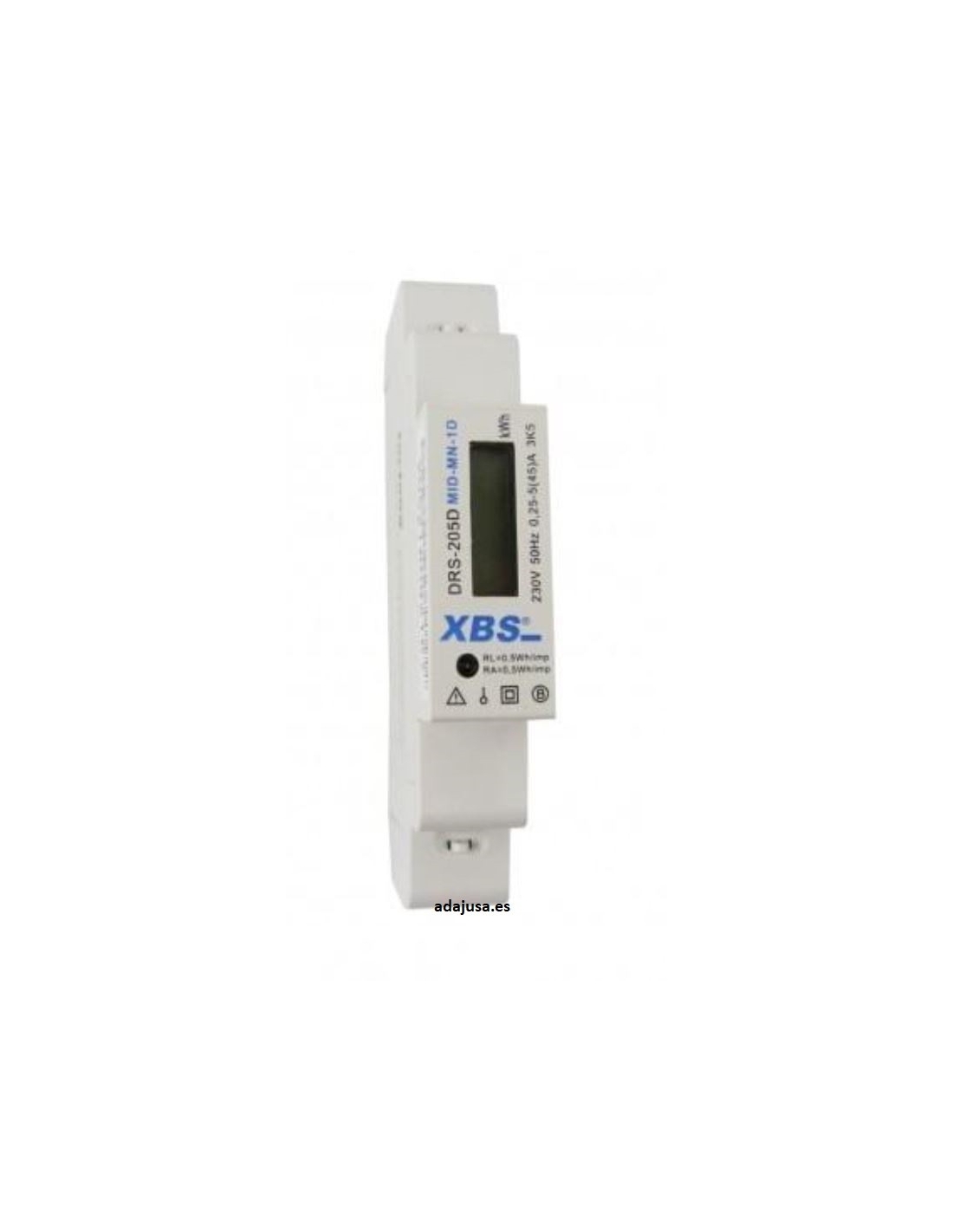

Single-phase MID electric power meter 1 DIN rail module

€29.55 Tax included

€24.83 tax excl.

Electric power meter for 230Vac single phase installations, active power meter, allows to control the consumption of an installation. DIN rail mounting, digital indication on LCD display. Maximum direct measured current 45A. Complies with MID regulations on measuring instruments.

Reference: MID-MN-1D

No queries yet, leave the first!


Electric power meter meter for consumption control of 230Vac single-phase installations or machinery. Compact in size, only 1 module wide (17.5mm), reading is done directly on the LCD display (kWh).

DIN rail mounting, direct connection to the mains, with a maximum intensity of 45A. High reliability and precision in size. Comply with MID standards for measuring instruments.

It has visual indication of counting, by LED, emits a flicker for each pulse counted.

Technical details.

  • Manufacturer/Supplier: XBS
  • Reference: MID-MN-1D
  • Operating voltage: 230Vac50Hz.
  • Operating voltage range: 161 to 230Vac
  • Ib(Imax) Current: 5(45A)
  • Maximum measured circuit strength: 45A
  • Working current range: 0.4% Ib-Imax
  • Overcurrent tolerance: 30xImax (maximum 0.01s)
  • Type of measurement: Direct
  • Number of poles: 2
  • Precision class: Class 1
  • Display mode: 5+2 digit LCD display (99999.99 kWh)
  • Consumption:
  • Temperature range: -25oC+50oC
  • LED indicator: 1 flicker per impulse
  • Pulse output: 2000 pulses/kWh
  • Degree of protection: IP51 (With protective cover)
  • Number of modules: 1 (17.5mm).
  • Mounting type: DIN rail.
  • Standard: en5047-1 and EN50470-3 MID compliant

Installation:

Montaje eléctrico contador de potencia ADM-25SC
