Material on request
€2,697.59 Tax included

€2,266.88 tax excl.

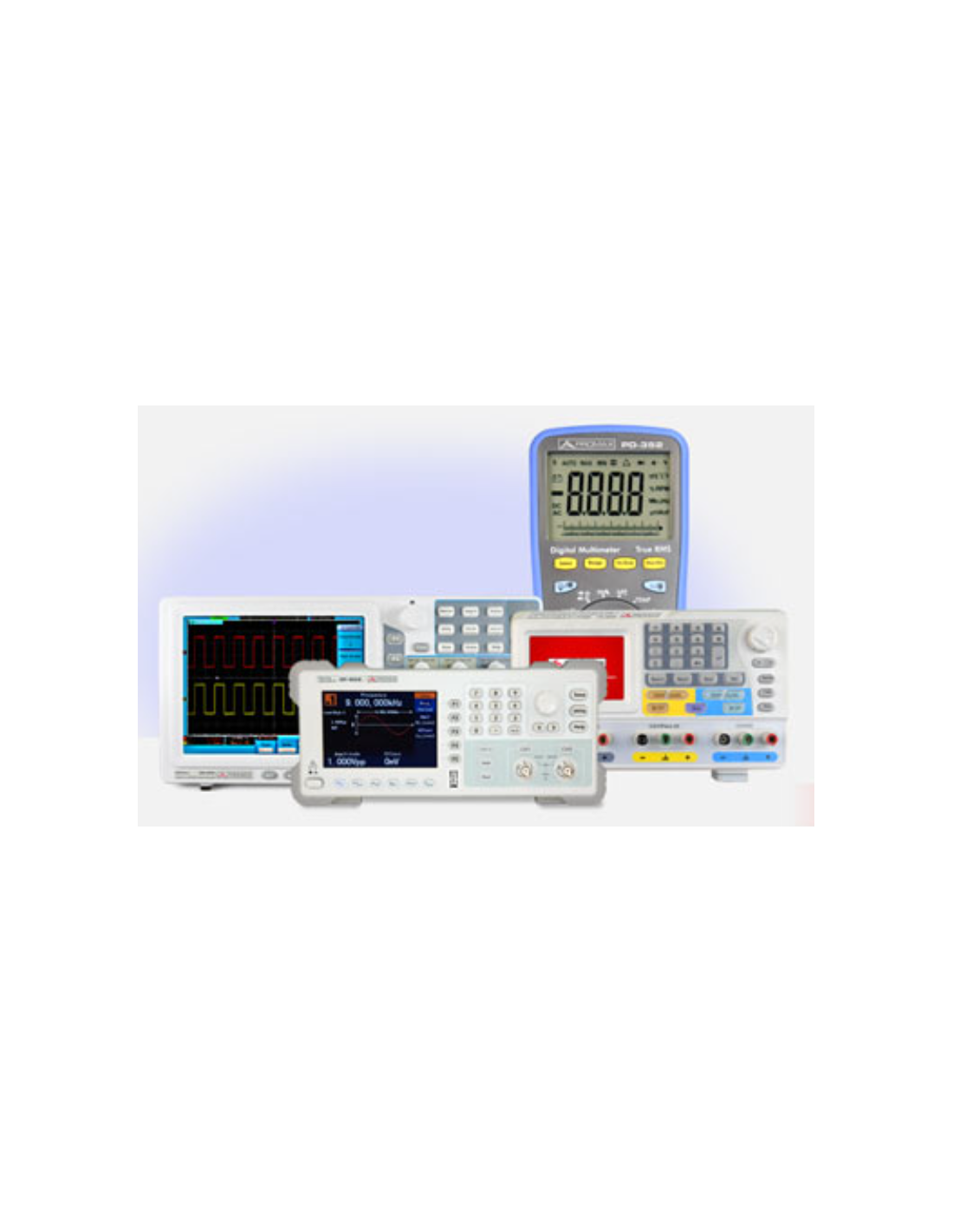

Kit for advanced work, intended for didactics and training in training centers, institutes and universities.


Contains:

    100MHz Color Digital Oscilloscope with USB
    Arbitrary function generator 5MHz, 125MS/s
    2x30V/5A programmable dual power supply (auxiliary 5V.3A)
    Digital multimeter RMS + Bluetooth control via Android

Reference: kit-advanced-didactic


No queries yet, leave the first!


Kit for advanced work, intended for didactics and training in training centers, institutes and universities.

Brand/Supplier: PROMAX
Reference: kit-advanced-didactic

Equipment and features:

100MHz DIGITAL OSCILLOSCOPE OD-610



ThePROMAX OD-610 is an oscilloscope with a bandwidth of up to 100 MHz and a real-time sampling rate of up to 1 GS/s. This professional digital oscilloscope has a large 8" screen.

They include advanced features such as different trigger modes, 20 automatic measurements, waveform storage and USB connectivity.

Its ultra-thin body (only 8 cm deep), compact design and low weight make this oscilloscope ideal not only for desktop applications such as circuit design or production lines but also for those cases that require transporting the instrument from one place to another: Car maintenance, education and training, etc.






  • 5MHz ARBITRARY FUNCTION GENERATOR, 125 MS/s GF-856

The arbitrary GF-856 5 MHz generator uses DDS (Digital Data Storage) technology to deliver two programmable signals displayed on a 4-inch color LCD display. All basic waveforms are pre-programmed.

In addition to using the front keyboard, for programming, the program can be debugged on the computer and sent via USB. Create your own waveforms on the PC to generate with the instrument.

One of the features that makes the generator especially interesting is the possibility of reproducing all kinds of analog and digital modulations: AM, FM, PM, FSK and perform sweeps and burst. It also has input for exterior modulation and external clock input. Includes a frequency counter up to 200 MHz of 6 digits.

  • High-resolution 4-inch TFT LCD display
  • Advanced DDS technology
  • Sampling rate 125 MS/s
  • 1 μHz frequency resolution
  • 14-bit vertical resolution
  • Waveform record length 1 M
  • 5 pre-programmed waveforms
  • Standard USB port interface
  • Control software included





  • PROGRAMMABLE DUAL LABORATORY SOURCE 2X30V, 5A (AUXILIARY 5V, 3A) FA-853


FA-853 dual programmable power supply (power supply) with high performance and excellent performance. It includes up to 100 output groups with configurable timer, has a high-resolution LCD screen, complete noise and curling elimination, comprehensive protection against overvoltage, overcurrent and overheating, friendly design and interface, very intuitive for the user. The interface has a variety of standard functions to meet the requirements of the test.

  • Dual Output: Independent and Separately Adjustable Outputs
  • Fixed output 5 V / 3 A
  • Low noise and curly: ≤ 300 μVrms / 2 mVpp
  • Four operating modes: independent parallel connection, serial connection, symmetrical
  • Interface: USB 2.0, RS232
  • Control software included




  • TRMS MULTIMETER AND BLUETOOTH CONTROL VIA ANDROID APP PD-352



The new range of digital testers offers a new concept of making measurements, much more precise, more comfortable and with additional features such as measurements through a mobile application where you can control the data obtained remotely in real time on any device with Android system, such as tablets or mobile phones.

  • 3 functions in 1: Multimeter + Temperature + Datalogger
  • CAT III (1000 V)
  • Multiconnection, access to several devices through the mobile application via Bluetooth
  • Automatic reading of measurements by voice
  • True RMS (PD-350 and PD-352)
  • Full 3 5/6 digit reading with scale and large backlit display
  • Intelligent auto shutdown (prolongs battery life)
