Needle roller bearings NK-TV-XL 6/12 6x12x12 - INA

€12.21 Tax included

€10.26 tax excl.

Needle roller bearings (needle cup) single row with flanges, without inner ring and with polyamide 66 cage, dimensions 6x12x12mm. Needle roller bearings with edges are constructive units, formed by machined outer rings with chip removal, with edges and needle crowns.

Reference: NK 6/12-TV-XL

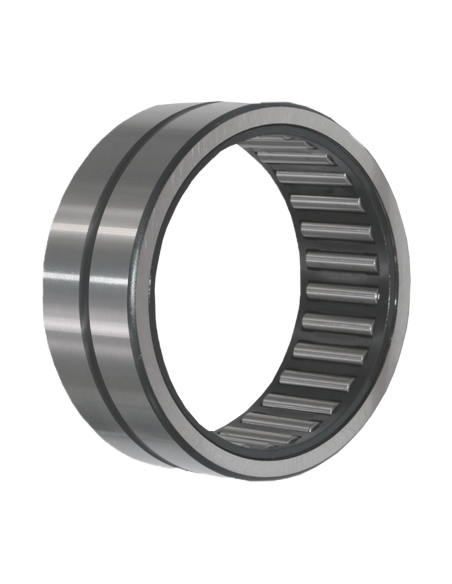

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Needle roller bearings are the best solution for bearings, when the shaft can be hardened and ground, since they occupy a very small radial space, but they require that the shaft raceway be hardened and ground.

NK ... TV bearings come with a glass fiber reinforced polyamide 66 cage, with sealing rings, without greasing hole and without lubrication groove.

For needle roller bearings without an inner ring, the raceway of the needle rollers on the shaft must be hardened and ground.

The dimensional and rotational tolerances correspond to tolerance class PN, according to DIN 620.

Dimensions: Ø6xØ12x12mm .

For other references or measures consult.




Characteristics:

  • Material: hardened steel.
  • Dimensions
    • fw: 6mm
    • D: 12mm
    • C: 12mm
    • r: 0.15 min.
  • Load capacities (N)
    • Dynamic C: 3800
    • Dynamic Static C0: 3150
  • Fatigue load limit (N): 520
  • Limit speed (min–1) : 36500

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
