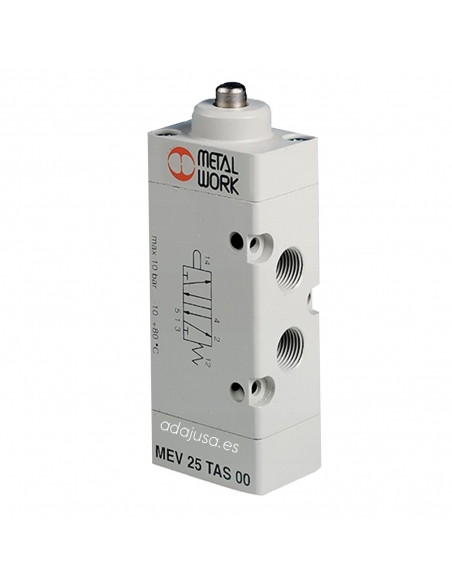

Limit Switch 1/8 5-way strut tyre - Metal Work

€28.86 Tax included

€24.25 tax excl.

limit switch pneumatic drive with pushbutton drive, 1/8" 5-way mechanical drive. Drive by mechanical strut spring return.

Reference: MEV 25 TAS OO - 7001000110

Simbolo final de carrera neumatico 5 vias monoestable

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


limit switch 1/8 5-way single-seat tyre. Front drive and with all functional tracks and with 1/8" thread. The valve is 5-way monostable (spring return).

This limit switch belongs to the 70 series of mechanical drive of the European manufacturer Metal Work.

specifications:

  • Manufacturer: Metal Work.
  • Reference: MEV 25 TAS OO.
  • Code: 7001000110.
  • Fluid: Pressure or vacuum air, with or without lubrication.
  • Valve body: aluminum.
  • Sliding material: Nickel-plated aluminium.
  • Gaskets: NBR.
  • number of tracks: 5.
  • Size: 1/8".
  • Positions: 2 return per spring.
  • Control: Front piston.
  • Working pressure: Empty÷10 bar.
  • Temperature: -10÷60oC.
  • Nominal diameter: 5mm.
  • Flow rate at 6bar P 0.5bar: 400 Nl/min.
  • Flow rate at 6bar P 1bar: 550 Nl/min.
  • Installation: in any position.

Final de carrera 1-8 5-2 puntal Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

You might also like

16 other products in the same category:

Limit switch 3/2 NC...
Pneumatic Limit switchs

Limit switch 3/2 NC pneumatic strut 3/2 NC rear fittings 4 mm diameter - Aignep

Aignep
02VG03NCY1
€15.09 (€12.68 tax excl.)
Limit switch pneumatic strut with 3 way and 2 positions, monostable, normally closed (NC) and fittings located at the rear for tube outer diameter of 4 mm. Prepared for mounting with emergency push button or similar. Series: 02VPart no.: 02VG03NCY1 Representative image for illustrative purposes, the item supplied will correspond to the specifications...

Customers who bought this product also bought:

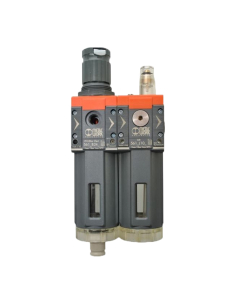

Filter + Lubricator T1 RMSA Syntesi - Metal Work - ADAJUSA
