€82.92 Tax included

€69.68 tax excl.

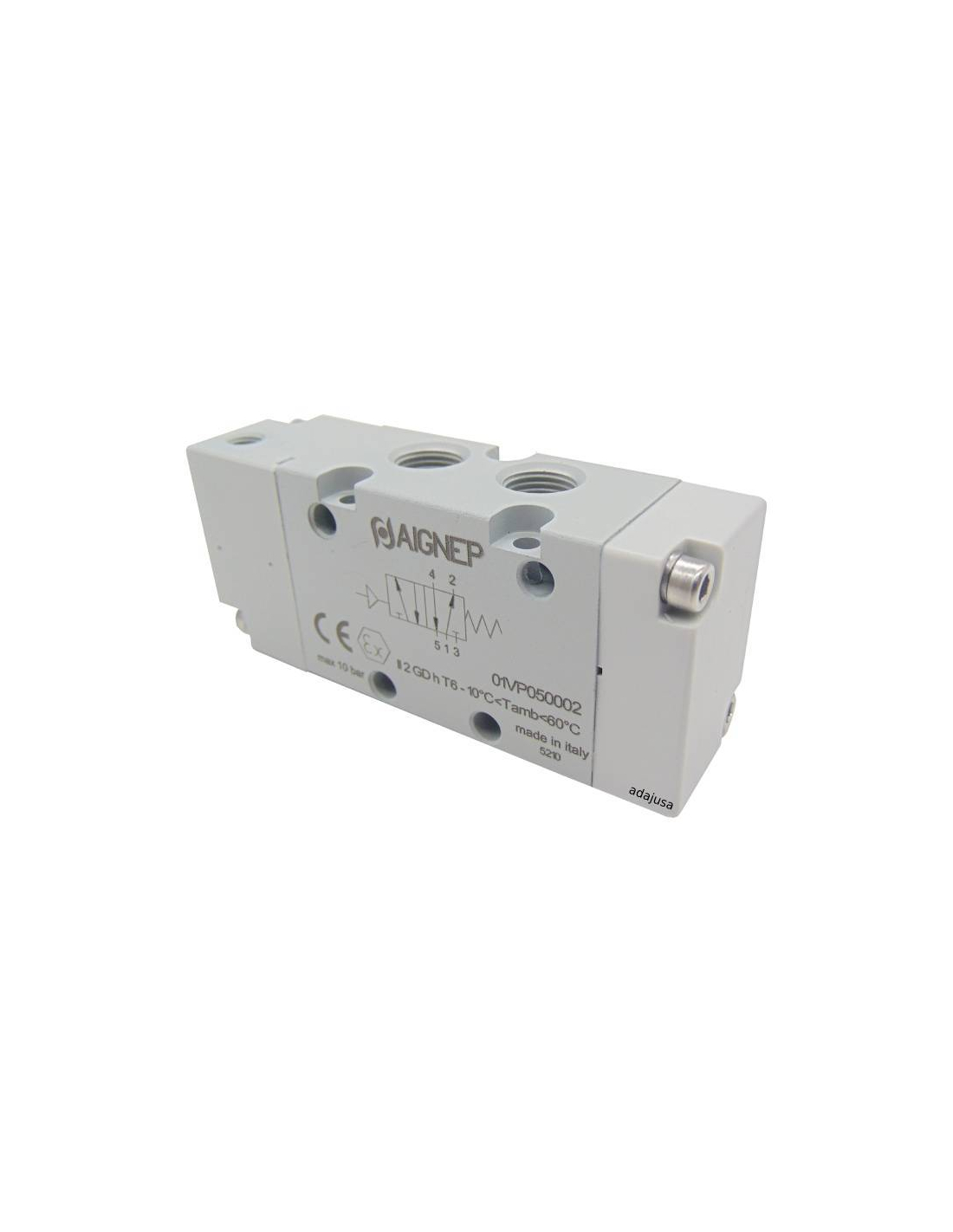

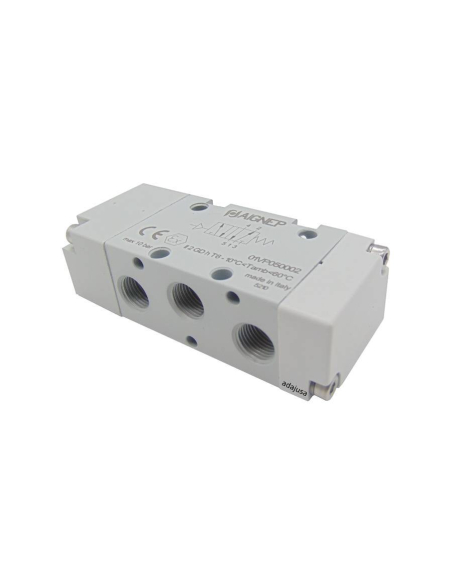

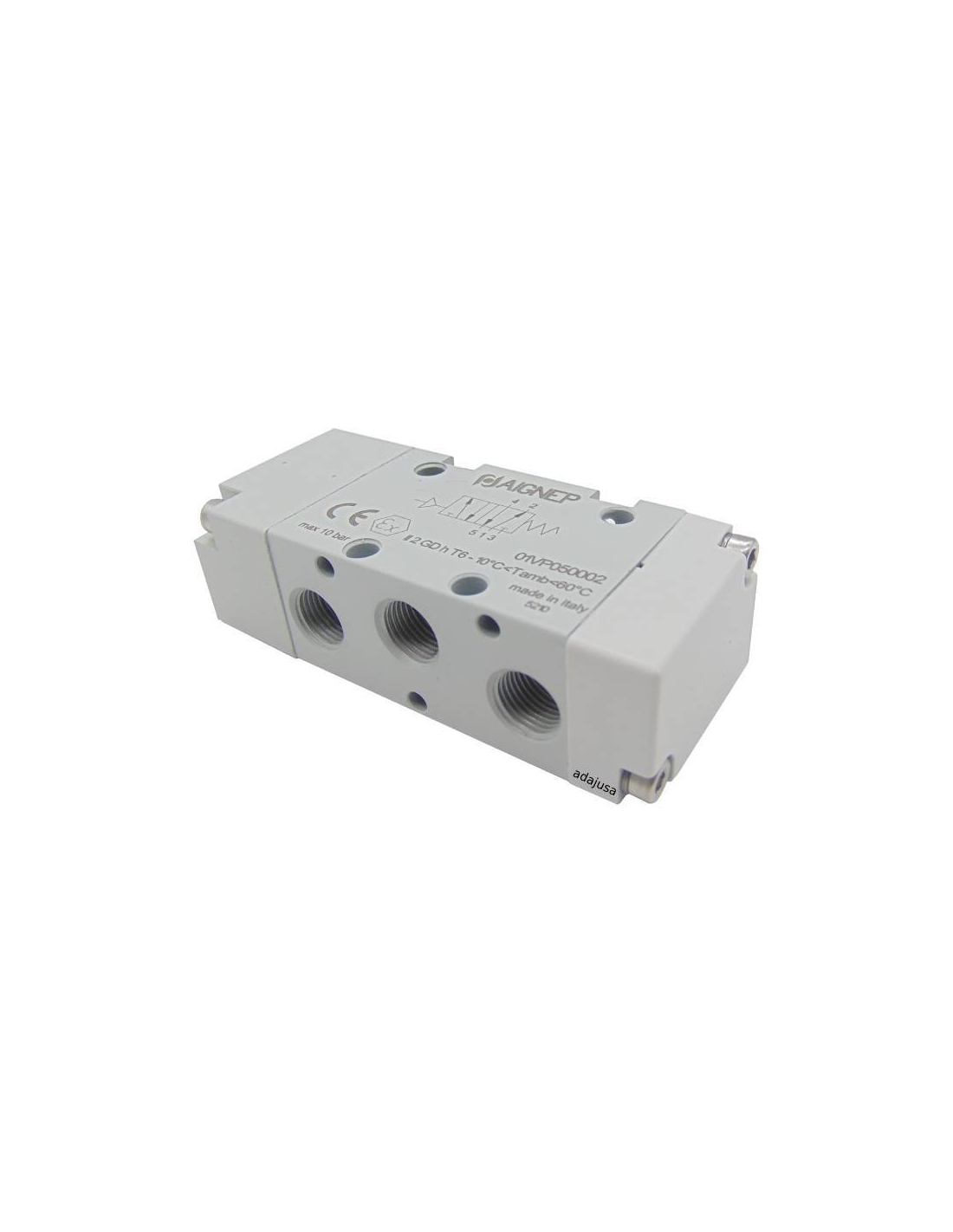

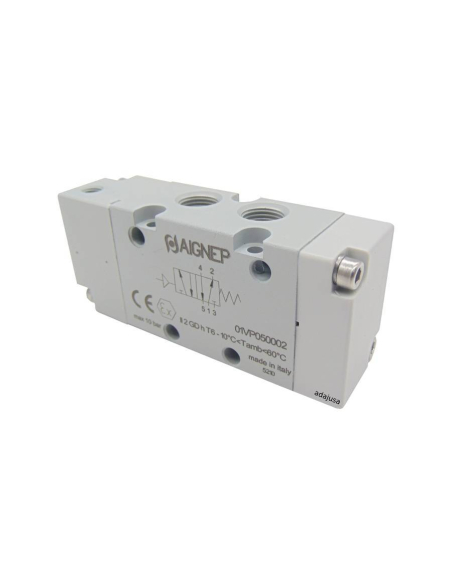

Valve 1/2 5 way 2 positions monostable. Anodized aluminum body, NBR seals.With G 1/2" threads.

Part no.: 01V P0 5 00 05

Simbolo neumatico valvula 3 vias monoestable NC Adajusa
Logotipo Aignep


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic valve 1/2 5 way 2 positions monostable. Body made of anodized and painted aluminum, slide in chemically nickel-plated aluminum and NBR gaskets.



Characteristics:

  • Pneumatic valve 1/2 5 way monostable
  • Manufacturer: Aignep
  • Part number: 01VP050005
  • Operating pressure: 0 - 10 bar
  • Actuating pressure: 2 - 10 bar
  • Operating temperature: -10ºC to +60ºC
  • Flow rate at 6 bar ΔP 1 bar: 5000Nl/min



Equipment for professional use, install in compliance with the regulations in force at the installation site.

For further information, please download the technical data sheet by clicking on the "Attachments" tab
