Bistable handle valve 1/8 3/2 - Metal Work

€30.42 Tax included

€25.56 tax excl.

Valve of 1/8 manual drive by handle. 3 ways 2 fixed positions. For control of cylinders of simple effect.

Reference: 7010001300

Logotipo Metal Work

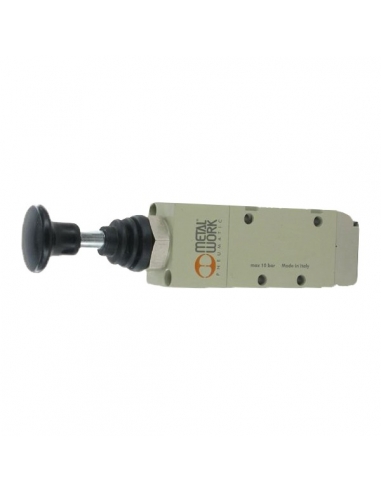

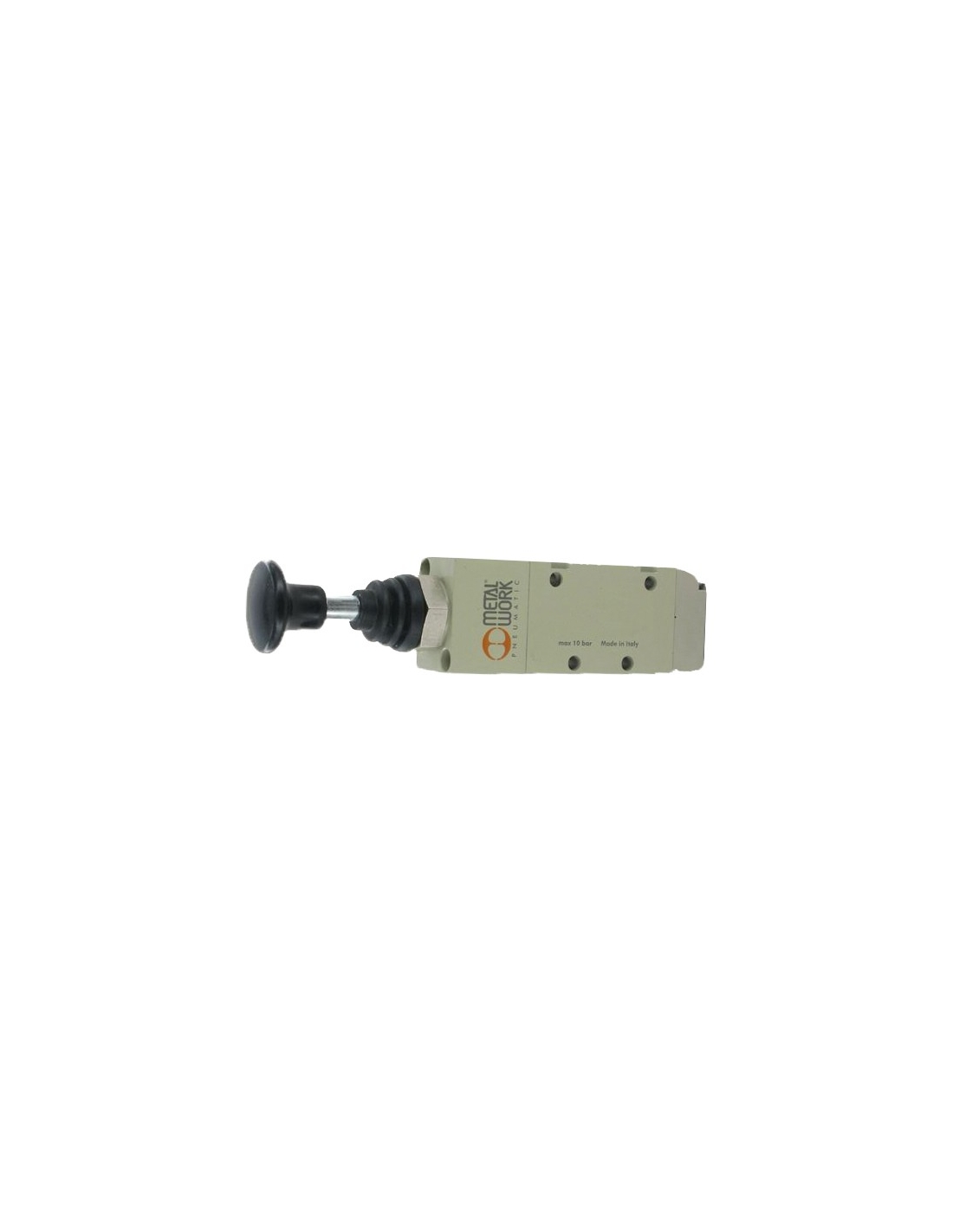

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Valve of 1/8 manual drive by bistable handle of 2 fixed positions, 3 ways 2 fixed positions, which allow to control cylinders of simple effect.

Fixing by side screws or front nut. For pneumatic applications.

Manufacturer: Metal Work.

  • Reference: 7010001300 MAV 23 PPB OO
  • Operating pressure: Empty ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550

Material for professional use, install in compliance with the regulations in force at the place of installation.
