Check valve 1 1/2 series Europe

Delivery 3-5 days.
€34.07 Tax included

€28.63 tax excl.

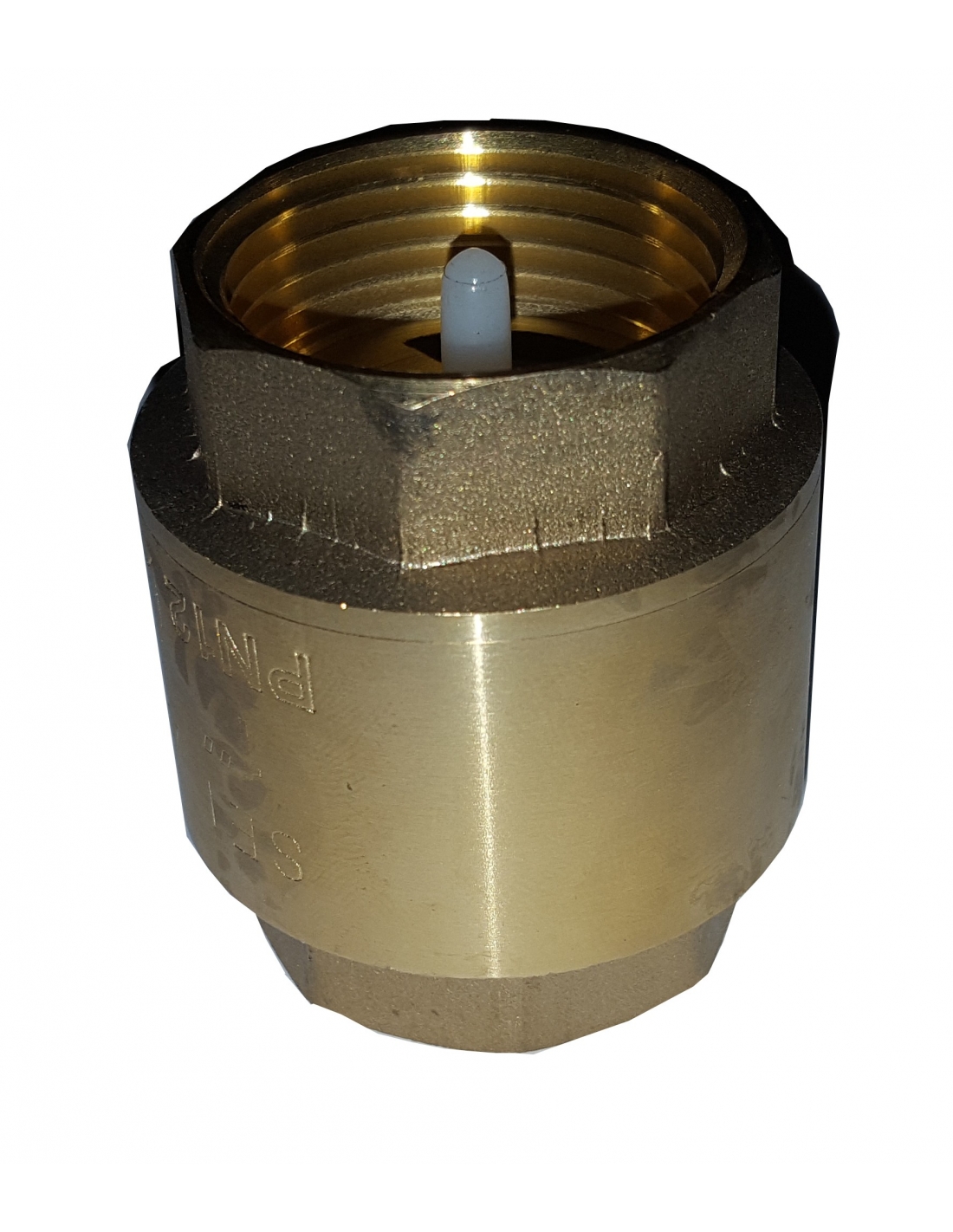

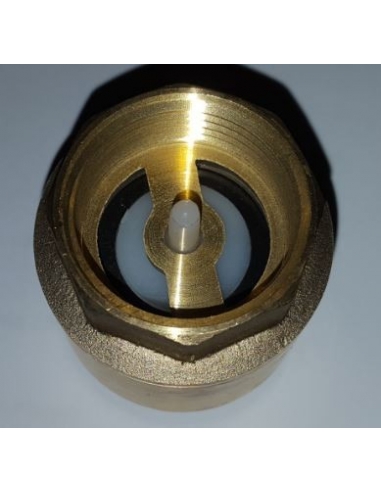

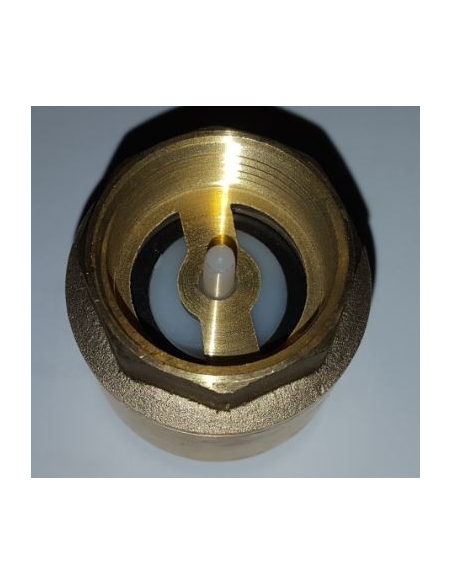

Anti-return check valve 1 1/2" , metal Europa series. It allows the passage of the aíre, vacuum or fluid, only in one of the two directions of travel.

Made of chromed brass with gaskets in NBR. Female thread on both sides.
efference: VU112UNI

Simbolo válvula antirretorno

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Metallic European series 1 1/2"  anti-return valve (retention) with female threaded joint at both ends, allows the passage of the aíre, vacuum or fluid, only in one of the two direction of travel.

These check valves are made of chrome-plated brass with closure seals in NBR material, can be installed in any position and with a maximum working temperature of 90o.

They can be used for pneumatic applications, vacuum or non-corrosive or flammable fluids. They should also not be installed in food applications.

Technical details:

  • Thread Size: Female G 1 1/2".
  • Brass body.
  • Brass disc.
  • NBR closure seals.
  • Maximum temperature: 90oC.
  • Stainless steel disc bell.
  • AISI 304 stainless steel spring.

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"
