Three-phase contactor 25A 24Vac auxiliary...
Three-phase contactor 25A 24Vac auxiliary...
Three-phase contactor 25A 24Vac auxiliary...
Three-phase contactor 25A 24Vac auxiliary contact closed NC TR1D Series
Three-phase contactor 25A 24Vac auxiliary contact closed NC TR1D Series
Three-phase contactor 25A 24Vac auxiliary contact closed NC TR1D Series

Three-phase contactor 25A 24Vac auxiliary contact closed NC TR1D Series

€15.07 Tax included

€12.66 tax excl.

Three-phase electric contactor equipped with high-capacity contacts, with 85% silver, for controlling electric motors, heating, lighting, ventilation, or general uses. 3-pole contactor with current capacity of 25A category AC3 or 40A category AC1, with 24Vac coil, the contactor is equipped with a closed auxiliary contact (NC).


Reference: TR1D2501B7

DIAGRAM1DNC

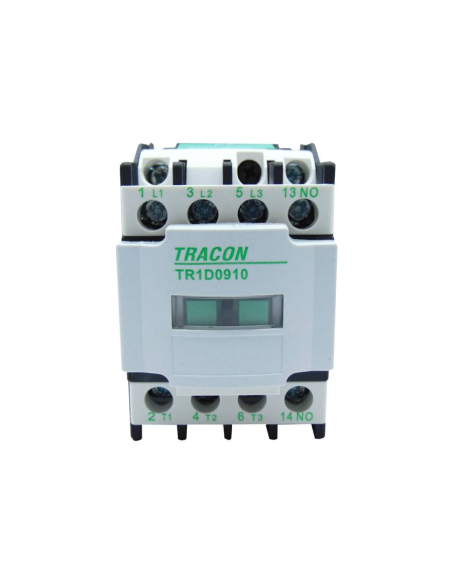

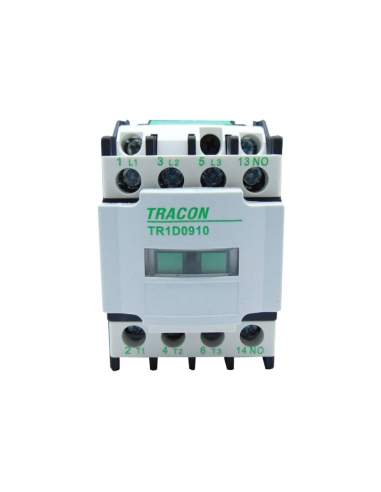

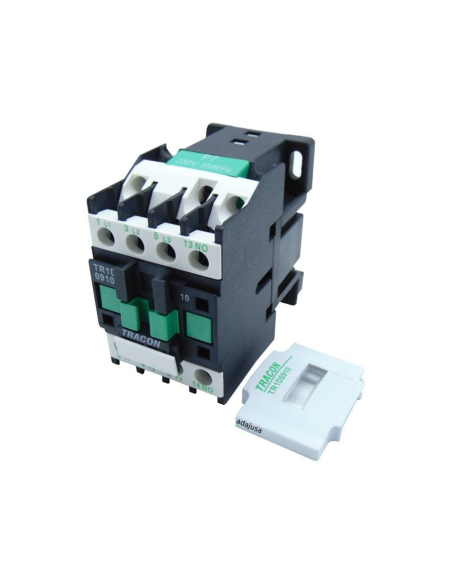

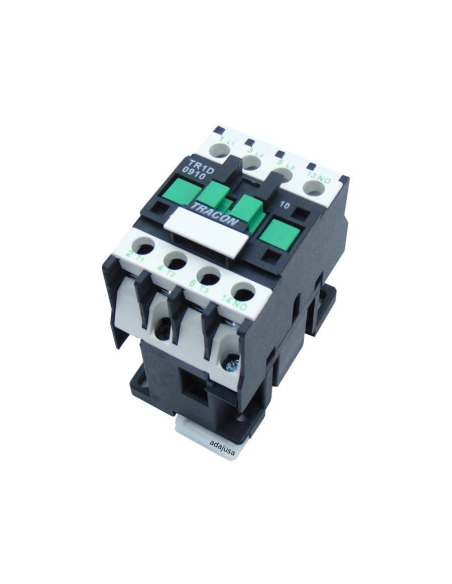

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase contactor (3 poles) of 25A in category AC3 or 40A in category AC1. The contactor is equipped with highly robust main contacts, made of 85% silver, which makes it suitable for demanding applications for controlling electric motors, heating, lighting, ventilation and general use systems. The contactor is equipped with a closed (NC) auxiliary contact. The contactor can be fixed using screws or by DIN rail.


We have a wide range of accessories for the contactor.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: TR1D2501B7
  • Number of poles: 3
  • Coil voltage: 24Vac 50/60Hz
  • Contactor rated current in AC1: 40A
  • Contactor rated current in AC3: 25A
  • Contactor rated current in AC4: 8.5A
  • Rated impulse voltage (Ui): 690 V
  • Contactor maximum power: 3~AC3 220/230V: 5.5kW
  • Contactor maximum power: 3~AC3 380/400V: 11kW
  • Maximum contactor power: 3~AC4 380/400: 3.7kW
  • Contactor maximum power: 3~AC3 415V: 11kW
  • Maximum contactor power: 3~AC3 500V, 660/690V:15kW
  • Auxiliary Contact integrated in the contactor: 1 Closed (NC)
  • Mechanical life expectancy: > 3.000.000 cycles
  • Electrical life expectancy: > 1.000.000 cycles
  • Driver section: 10mm 2
  • Working temperature range: -25ºC to +55ºC
  • Protection grade: IP20
  • Mounting conditions: The maximum inclination must not exceed ±30%


Dimensions:
Dimensions of Adajusa TR1D contactors




Material for professional use, install in compliance with the regulations in force at the installation site.
