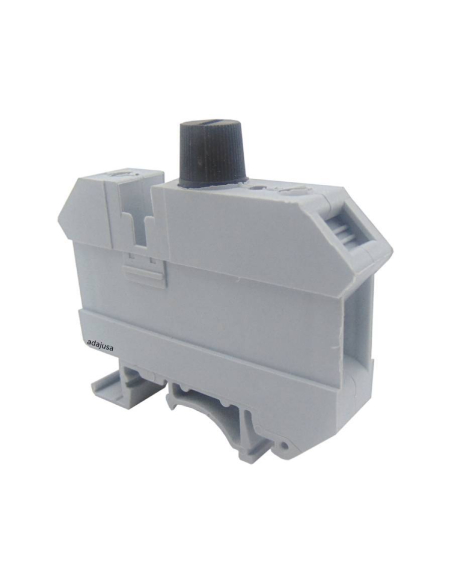

Terminal fuse holder 5x20mm of 16 mm TSKA Series

Name: Terminal fuse holder 5x20mm of 16 mm TSKA Series
Brand: TRACON
SKU: TSKA16B
Price: 2.4752 EUR
Availability: InStock

€2.48 Tax included

€2.08 tax excl.

Terminal fuse holder in grey color for cable up to 16mm and fuses size 5x20mm, screw-in fuse holder. DIN rail mounting.

Part number: TSKA16B

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Terminal fuse holder for electrical connection in gray color for cable up to 16mm, DIN rail mounting with lateral wiring. Terminal for fuses of size Ø5x20mm, screw-in fuse holder. Screw connection and tightening by clamp. Suitable for general applications where high reliability and easy installation are required.

Compact size, highly heat-resistant polyamide plastic housing, self-extinguishing (according to UL94-V0).

Technical characteristics:

Manufacturer/Supplier: Tracon
Part number: TSKA16B
Terminal color: Gray
Maximum voltage: 800V
Maximum current: 6.3A
Fault display element: LED
Supply voltage for fault indication: 200-250Vac
Thin conductor cross-section with termination: 0.5 - 16mm²
Solid conductor cross-section: 0.5 - 16mm² conductor cross-section: 0.5 - 16mm² conductor cross-section
Connection type: Screw
Material: Polyamide
Standards: EN 60947-7-1, EN 60947-7-2

W: 12,2mm, L: 62,6mm, H: 57,8mm, M: M4

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

3 other products in the same category:

Fuse holder terminals

Terminal 5x20mm 4mm fuse holder series TSKA

TRACON

TSKA4B

€1.82 (€1.53 tax excl.)

Terminal fuse holder in gray color for cable up to 4mm and fuses of size 5x20mm. DIN rail mounting. Part number: TSKA4B Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Terminal side cover Weidmuller adajusa.es

Terminal Accessories Series W- Weidmuller

Side cover for terminals 2.5 to 10 WAP 2.5-10 mm Grey - Weidmuller

Weidmuller

WAP 2.5-10

3 reviews

€0.36 (€0.30 tax excl.)

Side cover for W series terminals manufactured by Weidmuller, valid for terminals from 2.5 to 10mm. Made of grey.Ref: WAP 2.5-10 - 1050000000Representative image for illustrative purposes, the supplied article is subject to the specifications indicated.

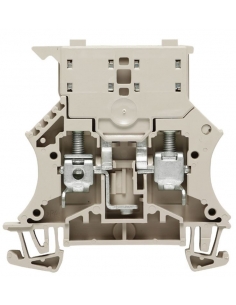

Fuse holder terminal 5x20mm WSI Weidmuller adajusa
