Single discs or ring gears Z34 1/2 x 5/16 08B-1 ISO DIN 606

€26.93 Tax included

€22.63 tax excl.

Discos dentados o cadenas dentadas simples para cadena de rodillos 1/2" 08B-1 según norma Europea DIN ISO 606

Referencia: DISCO Z34 1/2

Dientes: 34

ISO: 08B-1 (1/2" - 5/16 mm)

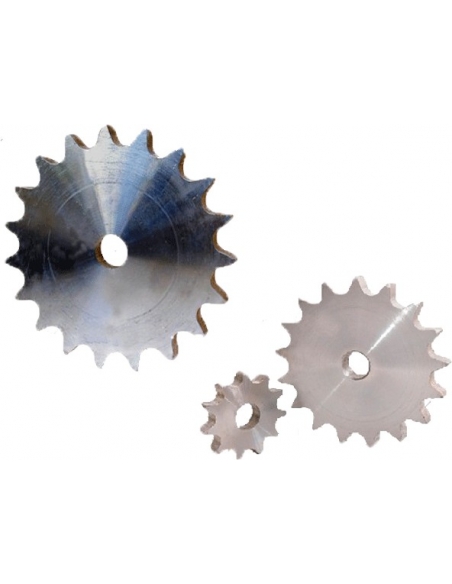

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!
Privacy
Shipments
Returns


Toothed discs or simple toothed crowns Z34 (34 teeth) for roller chain 1/2" 08B-1
Manufactured according to European standard DIN ISO 606

Manufacturer: Technox

Reference: DISCO Z34 1/2

The toothed discs or toothed crowns are made of 1020 steel, and are used to transmit power between two shafts joined through a roller chain.

Characteristics:

  • 1/2” x 5/16”mm ISO 08B-1
  • 12.7x7.75mm
  • Teeth: 34
  • Tooth Radius: 13mm
  • Curved area width: 1.3 mm
  • Tooth width (h1): 7.2mm
  • Outside Diameter (OD): 142.6
  • Primitive diameter (Dp): 137.64
  • Hub diameter (d): 16 (unmachined shaft)



Material for professional use, install in compliance with the regulations in force at the place of installation.
