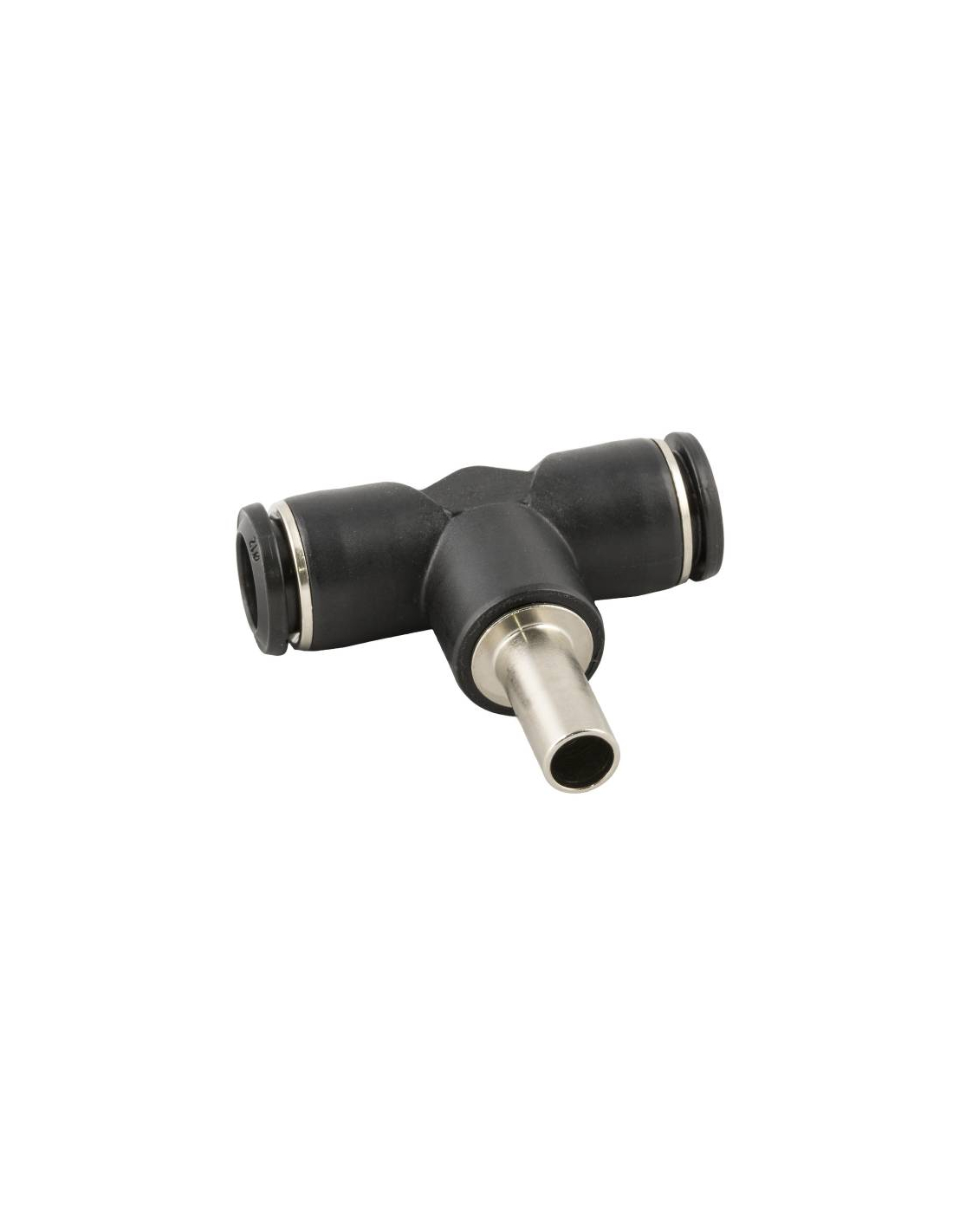

8mm pipe tee with 6mm center adapter 55000 series - Aignep

Name: 8mm pipe tee with 6mm center adapter 55000 series - Aignep
Brand: Aignep
SKU: 5523786
Price: 4.2483 EUR
Availability: InStock

€4.25 Tax included

€3.57 tax excl.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Automatic "T" fitting for 8mm O.D. pipes with central adapter diameter 6mm. Quick connection, made of technopolymer and nickel-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. It has a clamping spring, which clamps the tube without deforming or deforming it, thus simplifying the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

Manufacturer: Aignep.
Part number: 55237 8 6
Outer tube diameters: 8mm and 8mm
Adapter diameter: 6mm
Fluid: vacuum, compressed air and water
Material: Technopolymer and nickel-plated brass
Tube extractor ring: acetal resin
Seal of retention: NBR
Clamping spring: stainless steel
Pressure: -0,99 bar to 20 bar
Working temperature: -20ºC to +80ºC
Thread standard
- Gas conical according to ISO 7.1, BS 21,DIN 2999
- Gas cylindrical according to ISO 228 Class A
- Metric according to ISO R/262

55237dimensiones
55237td

Material for professional use, install in compliance with the regulations in force at the place of installation.
