Disconnector switch 4-pole  25a SQ 48x48 red...

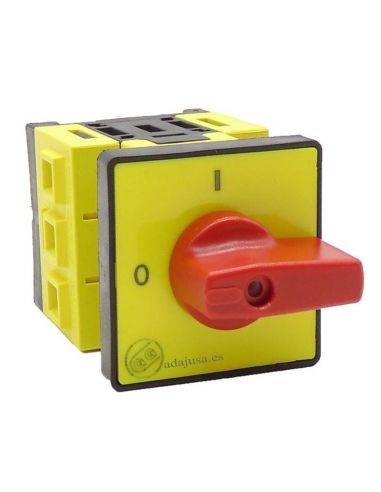

Disconnector switch 4-pole  25a SQ 48x48 red lever - Giovenzana

Disconnector switch 4-pole 25a SQ 48x48 red lever - Giovenzana

€23.56 Tax included

€19.80 tax excl.

four-poles disconnector switch 25a., 90º 0-1 48x48mm rotary knob, yellow front plate and red lever, made to the strictest European standards to meet safety requirements.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines.

reference: GISQ250448R
esquema electrico interruptor 4 polos
Giovenzana
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.



four-poles disconnector switch 25a for inductive loads (electric motors) and general control. Rotary control 90º two positions 0-1. Yellow front plate and red lever.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by transpanel fixation (rear-frame), degree of protection IP-20 in terminals, self-cleaning contacts and indelible laser marking. Body made of UL94 VO self-extinguishing material.

In addition to the transpanel (rear-frame) mounting the disconnector switch can be installed din-rail, being fixed by its base.

Supply includes:
  • Switch: SQ025003R
  • Front plate: 002/0001
  • Side contact: SQ025AFPR

characteristics:

  • Brand: Giovenzana
  • Switch Reference: SQ025003R
  • Plate reference: 002/0001
  • Side contact: SQ025AFPR
  • Number of poles: 3 poles + 1 additional pole
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 25a.
  • Thermal rated current ith: 32A.
  • Nominal interrupt capacity: 8kA.
  • Contacts: Slow opening of double interruption.
  • Number of manoeuvres / hours: 120.
  • Mechanical durability: 100,000 maneuvers.
  • Maneuvering angle: 90º.
  • Built-in mounting.
  • Degree of protection:
    • Type 1-4-4X controls: IP-65.
    • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14

Table of intensities and powers of use:

  • AC-21A usage category: 32A.
  • AC-22A Usage Category: 25a.
  • AC-23A Usage Category:
    • 230Vac three-phase standard motors: 25a - 7.5kW.
    • Standard 400Vac three-phase motors: 25a - 15kW.
  • AC-3 Usage Category:
    • Standard three-phase motors 230Vac: 22A - 5.5kW.
    • Standard three-phase motors 400VAc: 22A - 11kW.

    dimensions:

    Dimensiones interruptor seccionador 25A Giovenzana

    assembly:

    montaje-seccionadores
