€38.08 Tax included

€32.00 tax excl.

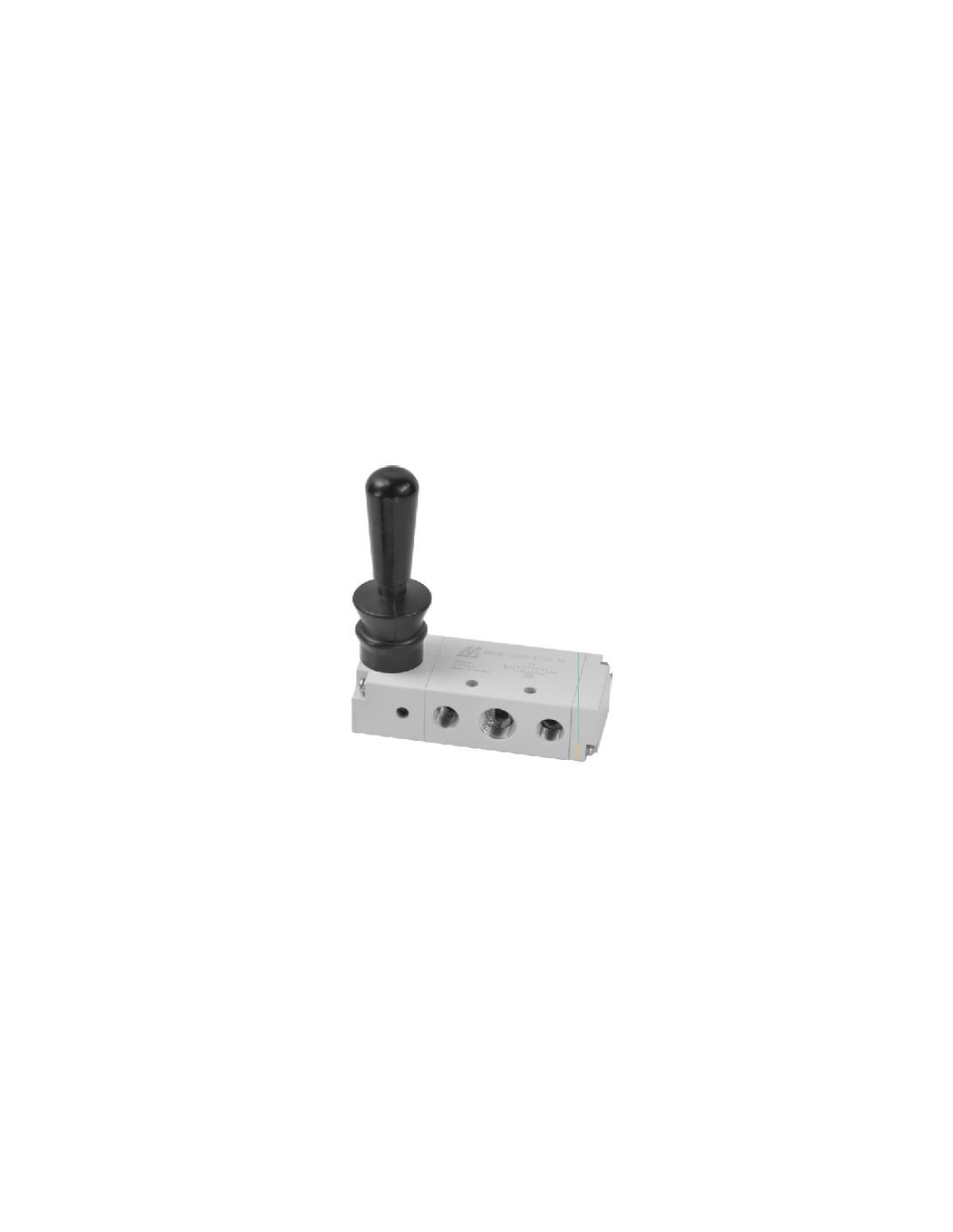

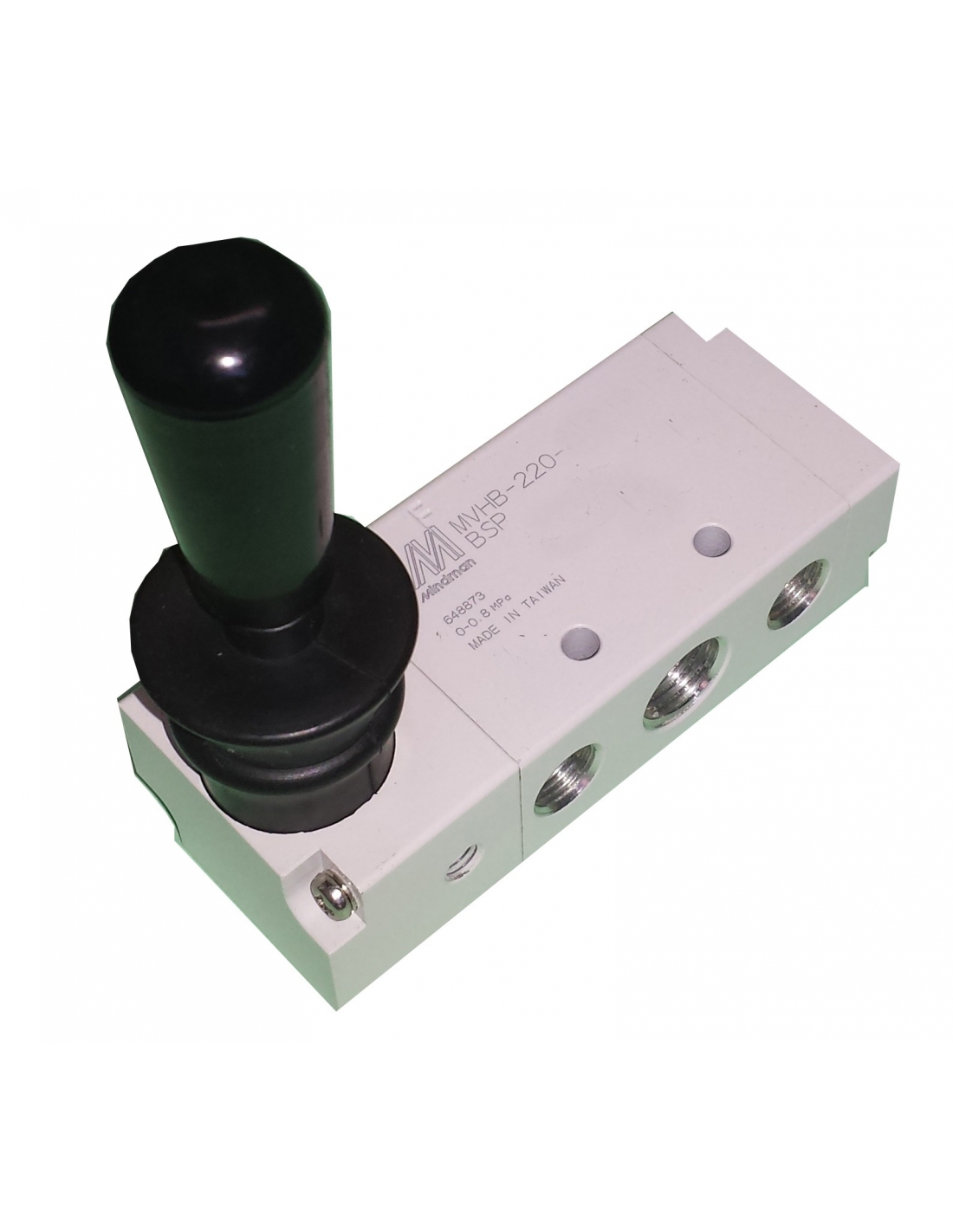

1/4 lever manual lever valve. 5-way 2 fixed positions, metal body. For single and double effect cylinder control.

Reference: 281MVHB2204TV


https://rodavigo.net/datos/logos-marcas-png/th_mindman.png
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


1/4 manual lever drive valve with 2 fixed positions, 5-way 2 positions that allow to control single and double-effect cylinders. In one position the cylinder is collected, in another position the cylinder advances. It can also be used as a pneumatic circuit passage valve or cut-off. The exhausts are threaded at 1/8".

Technical characteristics:

  • Manufacturer: Mindman.
  • Type: 5 ways.
  • Mode: 2 bistable (fixed) positions.
  • Thread type: G 1/4".
  • Type of exhaust threads: G 1/8".
  • Effective surface: 18mm2.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0 to 8 Kgr.
  • Working temperature: -5o to +60o (Non-condensing).
  • Screw-fixing: 4 through holes .
  • Valve body material: Metal.
  • Weight: 219 g.

Dimensiones válvula palanca mindman 1/4 MVHB2604TV

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
